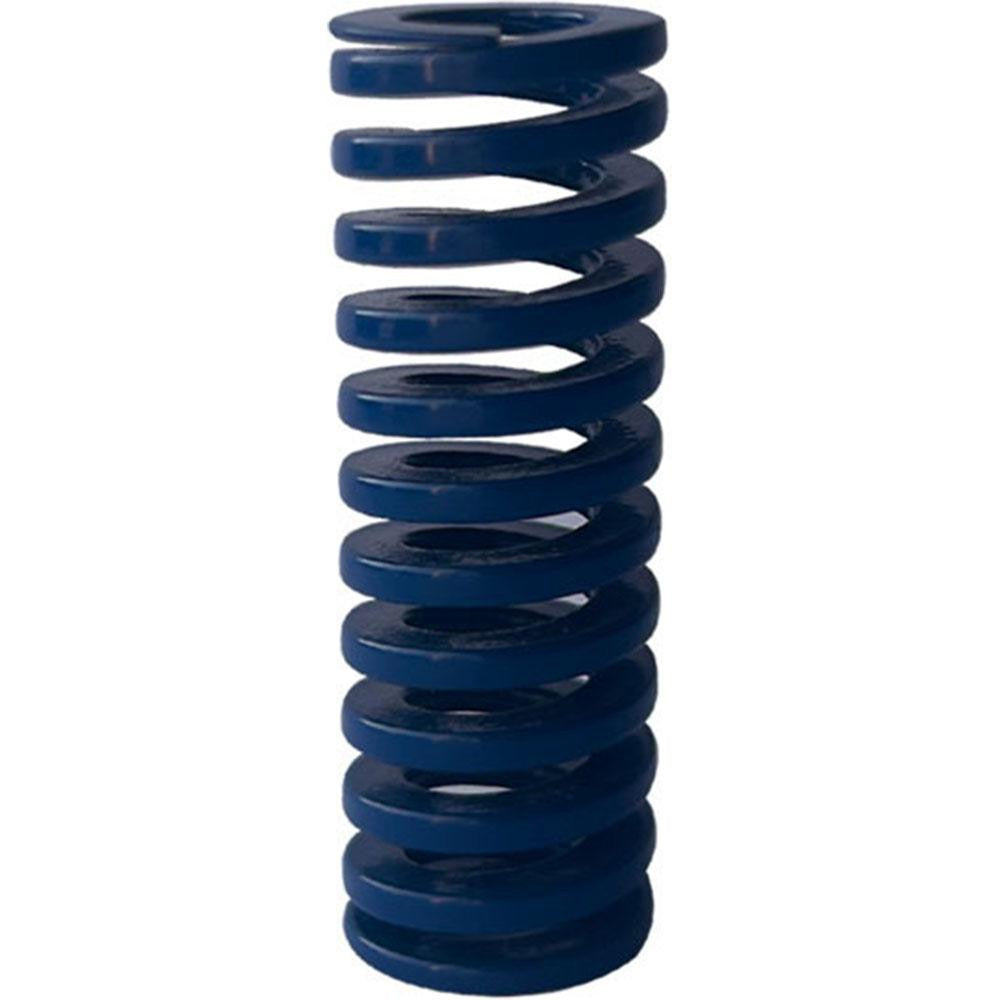

Gibraltar DCIM10-44 Die Spring 1.75 in Blue Medium-duty

Product Description

The GIBRALTAR DCIM10-44 is a medium-duty die spring designed for use in tooling, stamping, and press die applications. Constructed from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers consistent load performance across repeated compression cycles. It features a 0.375-inch hole diameter, a 0.1875-inch rod diameter, and a free length of 1.75 inches. Maximum deflection load is 51 pounds, with a maximum deflection of 0.93 inches and a spring rate of 55 pounds per inch. The blue color coding indicates medium-duty classification per ISO 10243 standards. Installed by tool and die makers, maintenance technicians, and machine builders requiring precise, repeatable spring force in confined die cavities.

This die spring is suited for residential and industrial tooling environments where consistent cycling force is required. Typical applications include stamping dies, injection molds, punch press assemblies, and fixture clamping mechanisms. The trapezoidal wire profile allows higher load capacity within a compact envelope compared to round-wire springs of equivalent size, making it a practical choice for space-constrained die sets.

Key Features

• Medium-duty classification with a maximum deflection load of 51 pounds
• Chromium alloy steel construction for durability under repeated cycling
• Trapezoidal wire cross-section for higher load density in compact spaces
• Blue color coding per ISO 10243 for easy duty-rating identification
• Spring rate of 55 pounds per inch for predictable, linear force response
• Meets NAAMS, ISO 10243, and ISO 9001:2015 standards

Compatibility

Designed as an OEM-style replacement or direct-fit die spring for medium-duty stamping dies, punch presses, and fixture assemblies requiring a 0.375-inch hole diameter and 0.1875-inch rod diameter.

Installation Notes

Die springs of this type are installed by tool and die technicians and maintenance personnel. De-energize and lock out all press or machine power before removing or installing any die spring. Ensure the mating rod diameter and pocket bore match the spring specifications before seating. Do not exceed the rated maximum deflection of 0.93 inches, as over-compression will shorten spring service life and may cause premature failure.
