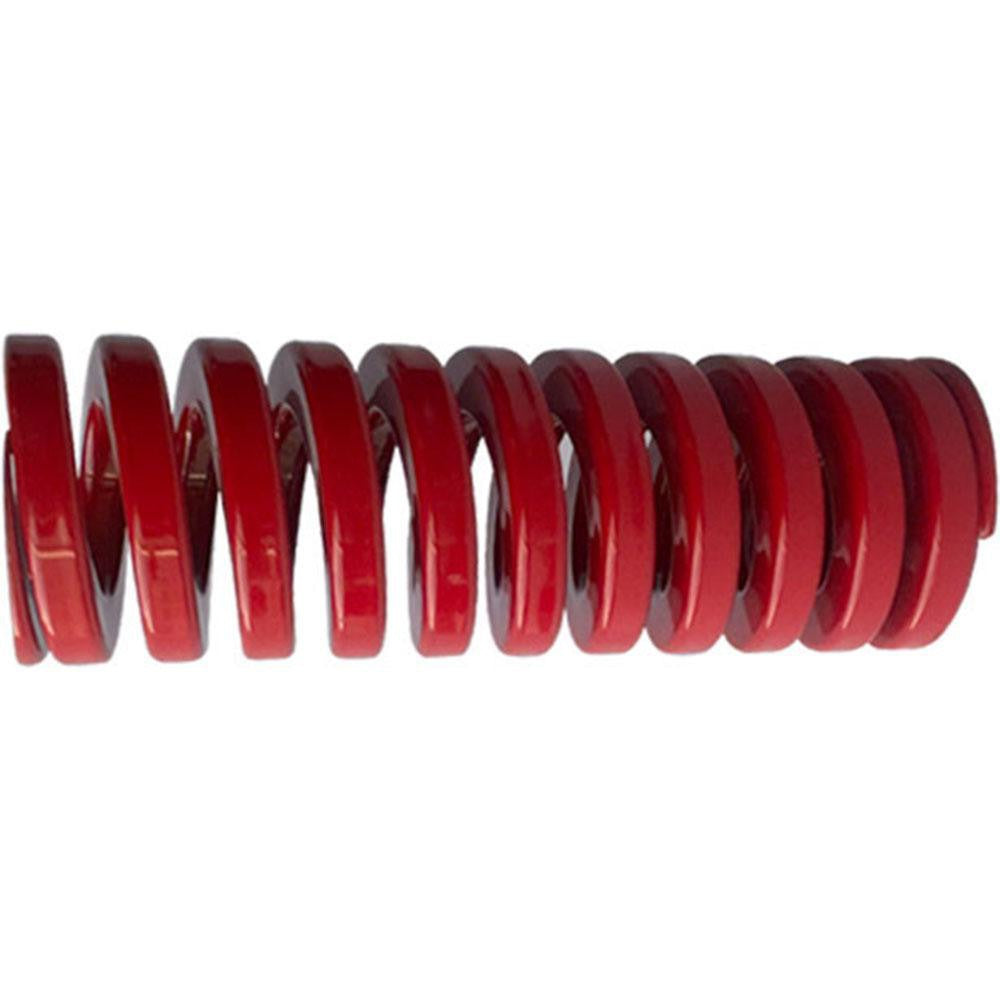

Gibraltar DCIH50-102 Die Spring 2in Hole 1in Rod 4in Heavy-duty

Product Description

The GIBRALTAR DCIH50-102 is a heavy-duty die spring designed for high-load tooling and stamping applications. Built from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers a maximum deflection load of 2020 pounds and a spring rate of 1398 pounds per inch. The red color coding indicates heavy-duty duty rating per industry-standard classification. At 4 inches free length with a 2-inch hole diameter and 1-inch rod diameter, it fits a standard range of die sets and press tooling. Maintenance technicians and tool-and-die professionals install this type of component during die rebuilds and press maintenance cycles.

This die spring is suited for industrial press tooling, stamping dies, injection mold assemblies, and other precision machinery requiring controlled return force under repeated compression cycles. It is commonly installed in both light manufacturing and heavy industrial environments where consistent spring performance and long fatigue life are critical. The DCIH50-102 conforms to NAAMS and ISO 10243 standards, making it appropriate for automotive tooling applications and other metric-compatible die systems.

Key Features

• Heavy-duty duty rating with a maximum deflection load of 2020 pounds (8989 N)
• Chromium alloy steel construction for fatigue resistance under repeated cycling
• Trapezoidal wire shape provides higher load capacity relative to round wire designs
• Maximum deflection of 1.44 inches (36.58 mm) with a compressed length at maximum load of 1.44 inches
• Red color coding identifies heavy-duty rating at a glance, consistent with NAAMS and ISO 10243 standards
• Meets NAAMS, ISO 10243, and ISO 9001:2015 quality system standards

Compatibility

Designed as an OEM-style replacement or direct-fit spring for heavy-duty die sets and press tooling requiring a 2-inch hole diameter, 1-inch rod diameter, and 4-inch free length. Conforms to NAAMS and ISO 10243 dimensional standards for broad interchangeability across compatible tooling platforms.

Installation Notes

Die springs of this type are installed by qualified tool-and-die technicians or maintenance professionals. Always de-energize and lock out the press before removing or installing die components. Ensure the mating rod and pocket dimensions match the spring specifications before installation, and inspect the spring seat and rod for wear or damage prior to reassembly. Do not compress the spring beyond its rated maximum deflection of 1.44 inches during operation.
