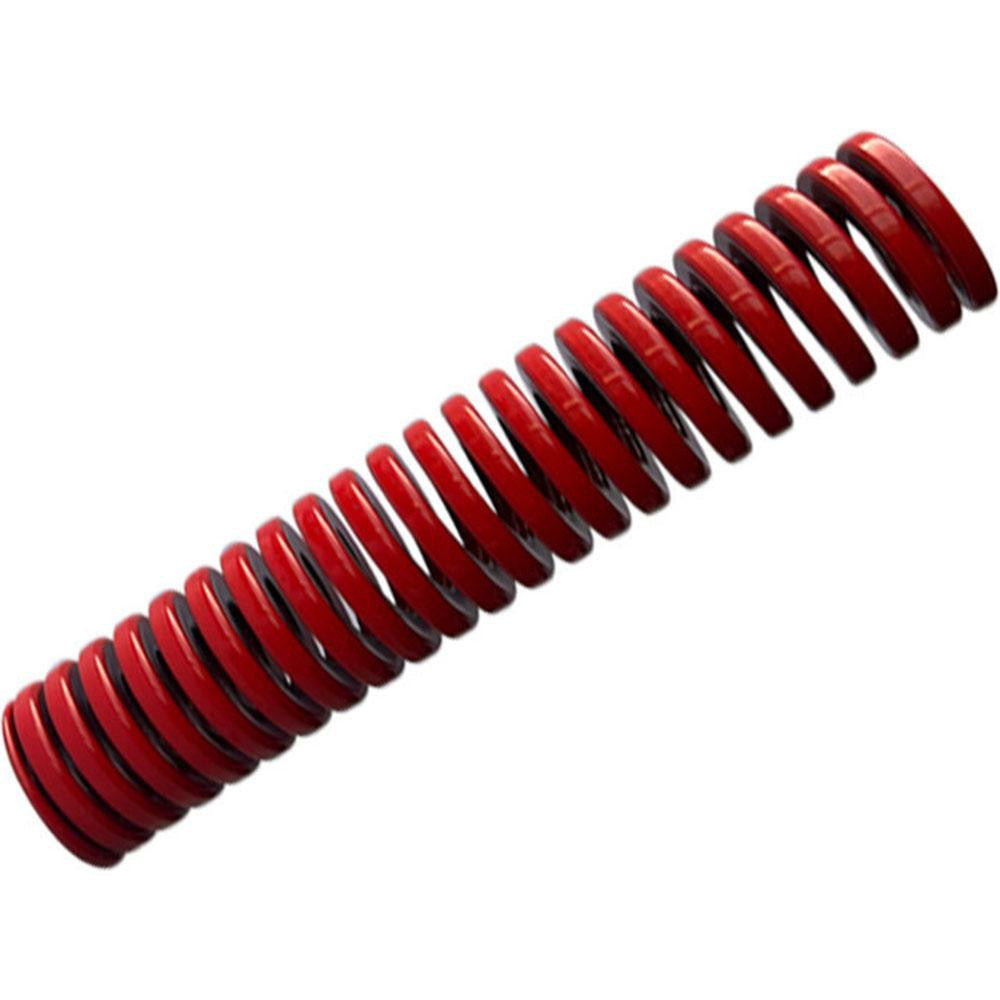

Gibraltar DCIH32-152 Die Spring Heavy-duty Red 6in

Product Description

The GIBRALTAR DCIH32-152 is a heavy-duty die spring designed for use in stamping dies, press tooling, and other high-cycle industrial applications. It features a trapezoidal wire cross-section made from chromium alloy steel, which provides a higher load capacity in a compact envelope compared to round-wire springs. With a 1-1/4 inch hole diameter, a 5/8 inch rod diameter, and a 6 inch free length, this spring delivers a maximum deflection load of 957 pounds at 2.05 inches of travel. The red color coding identifies it as a heavy-duty rated unit per standard die spring classification systems. Installed by tool-and-die technicians and industrial maintenance personnel.

This die spring is suited for use in progressive dies, compound dies, stripper plates, and similar press tooling where consistent, repeatable spring force is required. The trapezoidal wire profile allows higher energy storage per unit length compared to conventional round-wire springs. Applications include metal stamping, forming, and blanking operations in both production and toolroom environments. It is sold individually and is appropriate for new tooling builds as well as direct replacement of worn or fatigued springs during die maintenance.

Key Features

• Heavy-duty duty rating with 957 pound maximum deflection load
• Trapezoidal wire shape for higher load density versus round-wire designs
• Chromium alloy steel construction for durability in high-cycle press environments
• Red color coding for easy duty-rating identification at a glance
• Meets NAAMS, ISO 10243, and ISO 9001:2015 standards
• 2.05 inches maximum deflection with a spring rate of 467 pounds per inch

Compatibility

Designed as an OEM-style replacement or new-build component for stamping dies and press tooling requiring a heavy-duty die spring with a 1-1/4 inch hole diameter, 5/8 inch rod diameter, and 6 inch free length conforming to ISO 10243 and NAAMS dimensional standards.

Installation Notes

Die springs should be installed by qualified tool-and-die technicians or industrial maintenance personnel. De-energize and lock out the press before removing or installing any die components. Never compress a die spring beyond its rated maximum deflection, as exceeding this value can cause permanent set or premature fatigue failure. Inspect the mating rod and hole bores for proper dimensional fit and surface finish before installation to prevent side loading.
