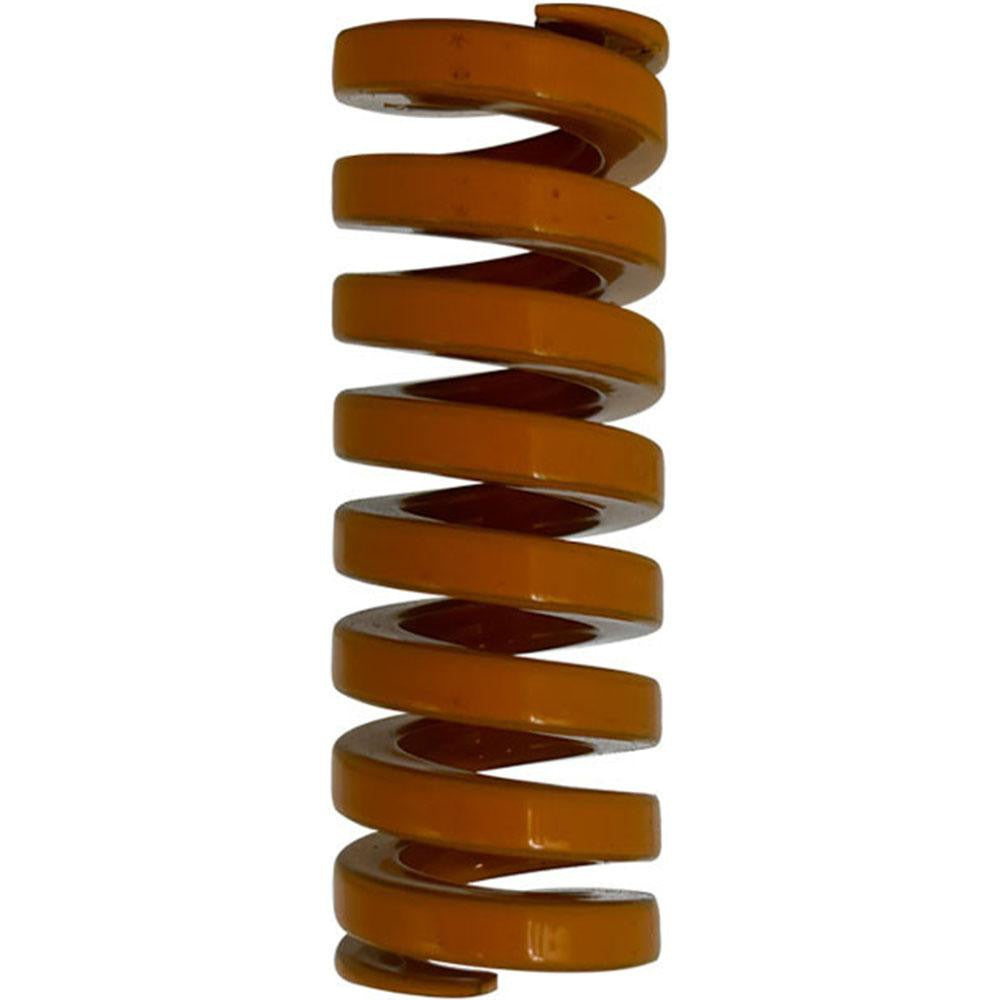

Gibraltar DCIB32-51 Die Spring Extra Heavy-duty Yellow

Product Description

The GIBRALTAR DCIB32-51 is an extra heavy-duty die spring designed for high-load tooling and stamping applications. Built from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers a maximum deflection load of 1177 pounds and a spring rate of 2007 pounds per inch. The yellow color coding indicates extra heavy-duty duty rating per industry-standard color classification. At 2 inches free length, it compresses to a solid height of 0.59 inches. Licensed HVAC, tooling, and mechanical maintenance professionals install this type of component in press tooling, die sets, and precision fixture assemblies.

This die spring is sized for a 1-1/4 inch hole diameter and a 5/8 inch rod diameter, making it compatible with standard die set configurations that call for extra heavy-duty yellow springs. Maximum deflection is 0.59 inches (14.99 mm), with a travel to solid load of 0.5787 inches (14.70 mm). It is packaged individually and sold in a minimum order quantity of one unit, suited for replacement or new tooling builds in manufacturing and industrial maintenance environments.

Key Features

• Extra heavy-duty duty rating with yellow color coding per NAAMS and ISO 10243 standards
• Chromium alloy steel construction with trapezoidal wire shape for high load capacity and fatigue resistance
• Maximum deflection load of 1177 pounds (5237.65 N) at 0.59 inches deflection
• Spring rate of 2007 pounds per inch for consistent, predictable force output
• Compliant with NAAMS, ISO 10243, and manufactured under ISO 9001:2015 registered quality systems
• Compact 2 inch free length fits standard die spring pockets without modification

Compatibility

Designed as a standard-dimension replacement or new-build die spring for tooling applications requiring a 1-1/4 inch hole diameter, 5/8 inch rod diameter, and 2 inch free length in the extra heavy-duty (yellow) duty class per NAAMS and ISO 10243 specifications.
