Gibraltar CP4263-G Soft Core Pin 1/4 in Steel

Product Description

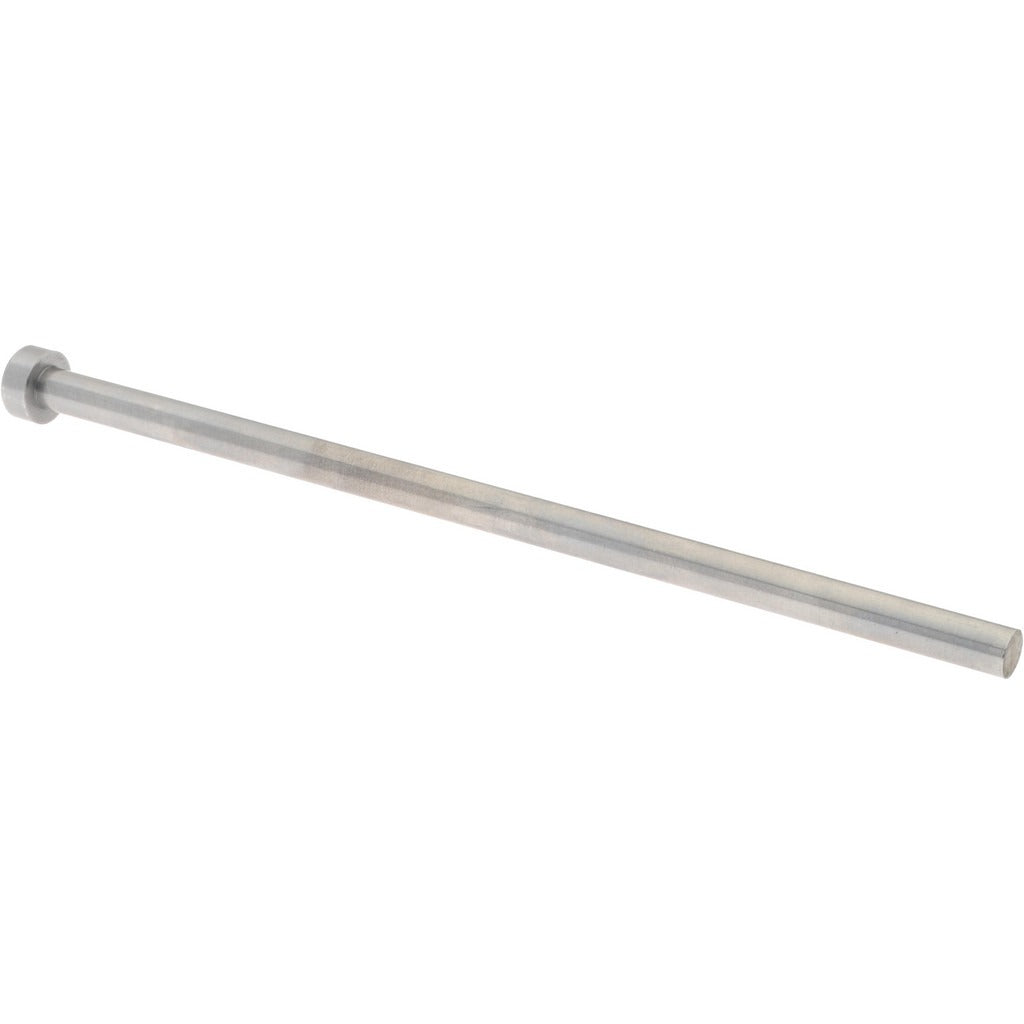

The GIBRALTAR CP4263-G is a soft core pin used in fixturing, jig building, and workholding applications across manufacturing and fabrication environments. This pin features a 1/4 inch diameter shank with an overall length of 6 inches and a usable pin length of 5.812 inches. The head measures 7/16 inch in diameter and 3/16 inch in height, providing a positive stop against the workpiece or fixture plate. Constructed from steel with a soft core, the pin is designed to be easily driven, removed, or cut to length without damaging surrounding components. Machinists, toolmakers, and fabricators are the primary installers of this type of component.

This soft core pin suits general fixturing and locating tasks in machine shops, production facilities, and assembly operations. The soft material allows for quick modification in the field, making it a practical choice for custom jig and fixture work where pins may need to be trimmed or adjusted on the job. It ships in a quantity of one and carries a minimum order quantity of one unit.

Key Features

• Soft core construction allows field modification without specialized tooling
• 1/4 inch pin diameter for standard locating and fixturing applications
• Overall length of 6 inches with a usable pin length of 5.812 inches
• 7/16 inch head diameter provides a positive seating surface
• 3/16 inch head height for low-profile fixture installations
• Steel material for durability in typical shop environments

Compatibility

Designed as an OEM-style replacement or direct-use locating pin for standard fixturing, jig plates, and workholding setups requiring a 1/4 inch diameter soft core pin with a 6 inch overall length.

Installation Notes

Installation is typically performed by machinists or toolmakers using a mallet or press to seat the pin into a prepared hole. Ensure the receiving hole diameter is machined to the appropriate tolerance before driving the pin to avoid damage to the fixture plate. Deburr hole edges prior to installation to ensure proper seating. Remove any chips or debris from the bore before inserting the pin.
