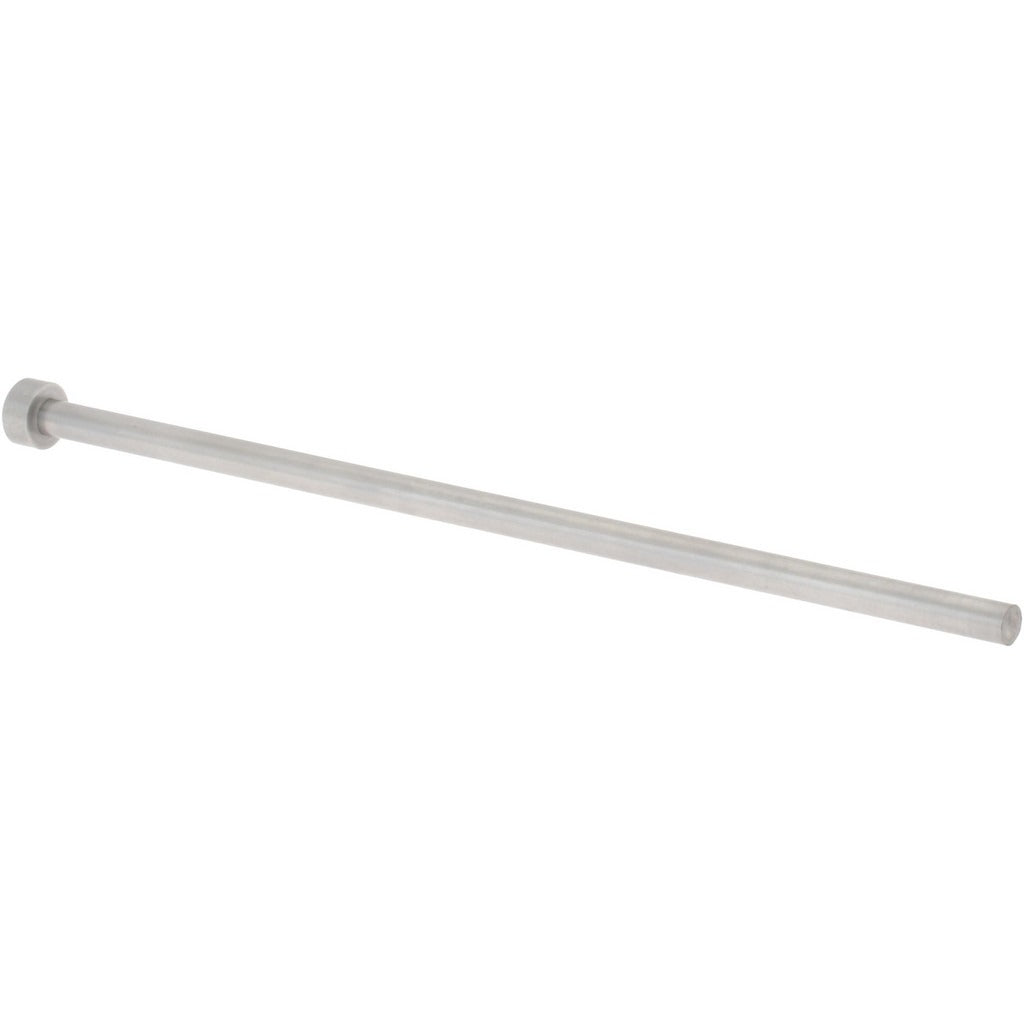

Gibraltar CP4257-G Soft Core Pin 13/64 in Steel

Product Description

The GIBRALTAR CP4257-G is a soft core pin designed for use in punch press tooling, jig and fixture work, and general industrial assembly applications. This pin features a 13/64 inch diameter shaft, a 3/8 inch head diameter, and an overall length of 6 inches, with a usable pin length of 5.812 inches. Constructed from steel with a soft hardness rating, it is intended for applications where the pin must absorb impact or be driven out without damaging the surrounding workpiece or tooling. Machinists, toolmakers, and maintenance technicians typically source this style of pin for locating and alignment tasks in production environments.

Soft core pins are commonly used in metal fabrication shops, machine shops, and manufacturing facilities where repeatable part location is required. The soft steel construction makes this pin suitable for applications where the pin is considered a sacrificial or replaceable component in a tooling setup. The 3/16 inch head height keeps a low profile in countersunk or recessed mounting configurations. This pin ships as a single unit and is compatible with standard soft pin tooling and fixture setups requiring a 13/64 inch nominal diameter.

Key Features

• 13/64 inch pin diameter for precise locating in standard soft pin tooling
• 6 inch overall length with 5.812 inch pin length for deep-reach fixture applications
• 3/8 inch head diameter provides a positive stop against the workpiece or fixture face
• 3/16 inch head height suits low-profile or countersunk installations
• Soft steel construction allows the pin to be driven or pressed out without damaging hardened tooling components

Compatibility

Designed as a standard replacement or stock soft core pin for industrial tooling, jig, and fixture applications requiring a 13/64 inch diameter soft steel locating pin.

Installation Notes

Soft core pins are typically installed and removed by toolmakers or maintenance technicians using a pin punch and hammer or an arbor press. Ensure the receiving hole is clean and free of burrs before installation. Pins should be inspected for deformation before reuse, and worn or bent pins should be replaced rather than straightened. Follow applicable shop safety procedures when working with punch press or fixture tooling.
