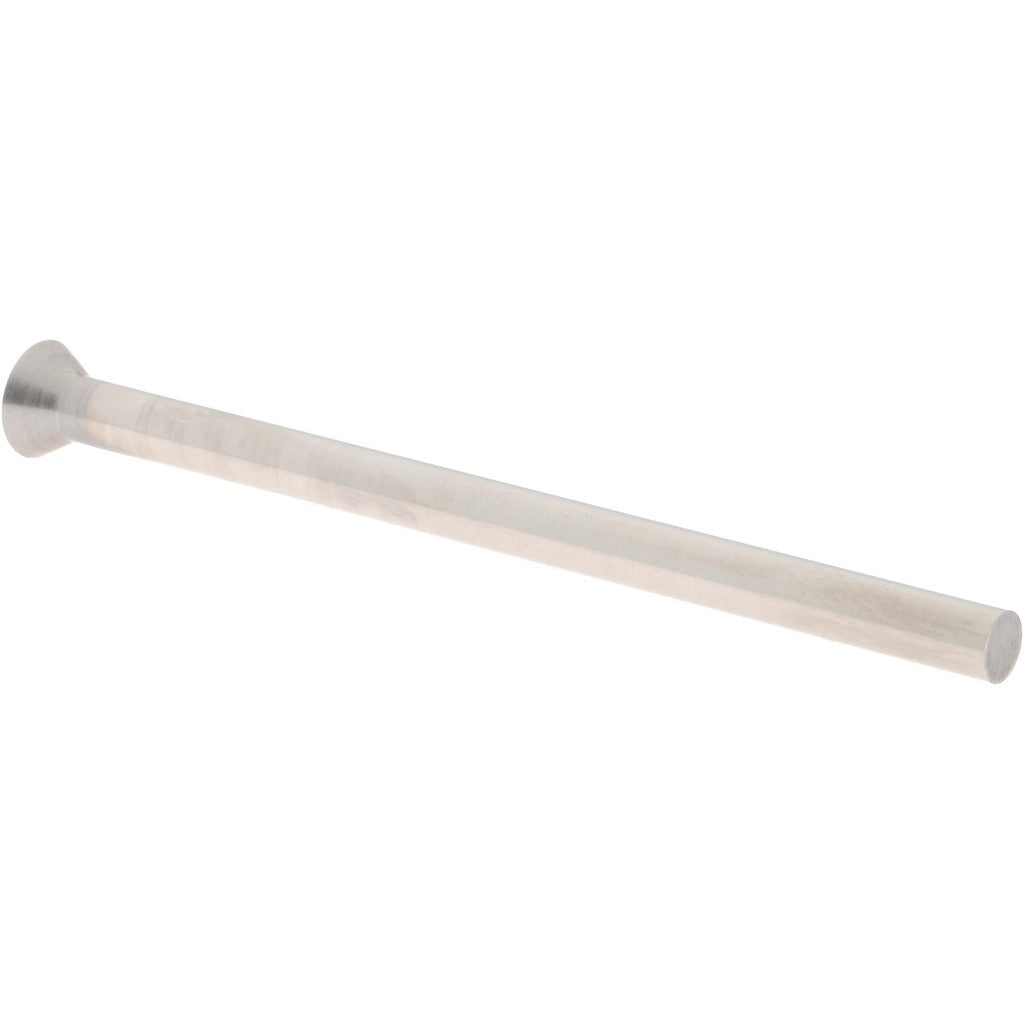

Gibraltar CP-1100 Conical Pin 0.152 in Hss Nitride

Product Description

The GIBRALTAR CP-1100 is a conical pin machined from high speed steel with a nitride finish, designed for precision locating and alignment applications in tooling, fixturing, and workholding setups. The pin measures 0.152 inches in diameter with a 2.5 inch overall length, a head diameter of 0.2736 inches, and a head height of 0.1915 inches. The nitride surface treatment provides improved wear resistance and hardness at the contact surface. At 0.02 pounds, the CP-1100 is a lightweight single-piece component well suited for use in production tooling environments where consistent part location is required.

The CP-1100 is used in machine shop, tool and die, and industrial manufacturing settings where conical pins are required for locating or aligning workpieces, fixtures, and assembly jigs. The conical geometry allows the pin to self-center during engagement, making it appropriate for applications involving repetitive part loading and unloading. This pin is typically installed and maintained by toolmakers, machinists, and fixture builders working with precision mechanical assemblies.

Key Features

• Conical pin geometry supports self-centering and repeatable part location
• High speed steel construction provides strength and wear resistance in demanding tooling applications
• Nitride finish adds surface hardness and corrosion resistance
• 0.152 inch pin diameter for precise dimensional control
• 2.5 inch overall length accommodates a range of fixture and workholding depths
• Lightweight at 0.02 pounds for minimal impact on fixture mass

Compatibility

Designed as a standard conical locating pin suitable for use in tooling, fixturing, and workholding applications requiring a 0.152 inch diameter conical pin in high speed steel.

Installation Notes

Installation is typically performed by qualified toolmakers or machinists using standard press-fit or slip-fit procedures appropriate to the fixture design. Ensure the receiving bore is clean and dimensionally correct before installing the pin to avoid damage to the pin or the tooling. Always de-energize and lock out any machinery associated with the fixture before performing pin installation or replacement.
