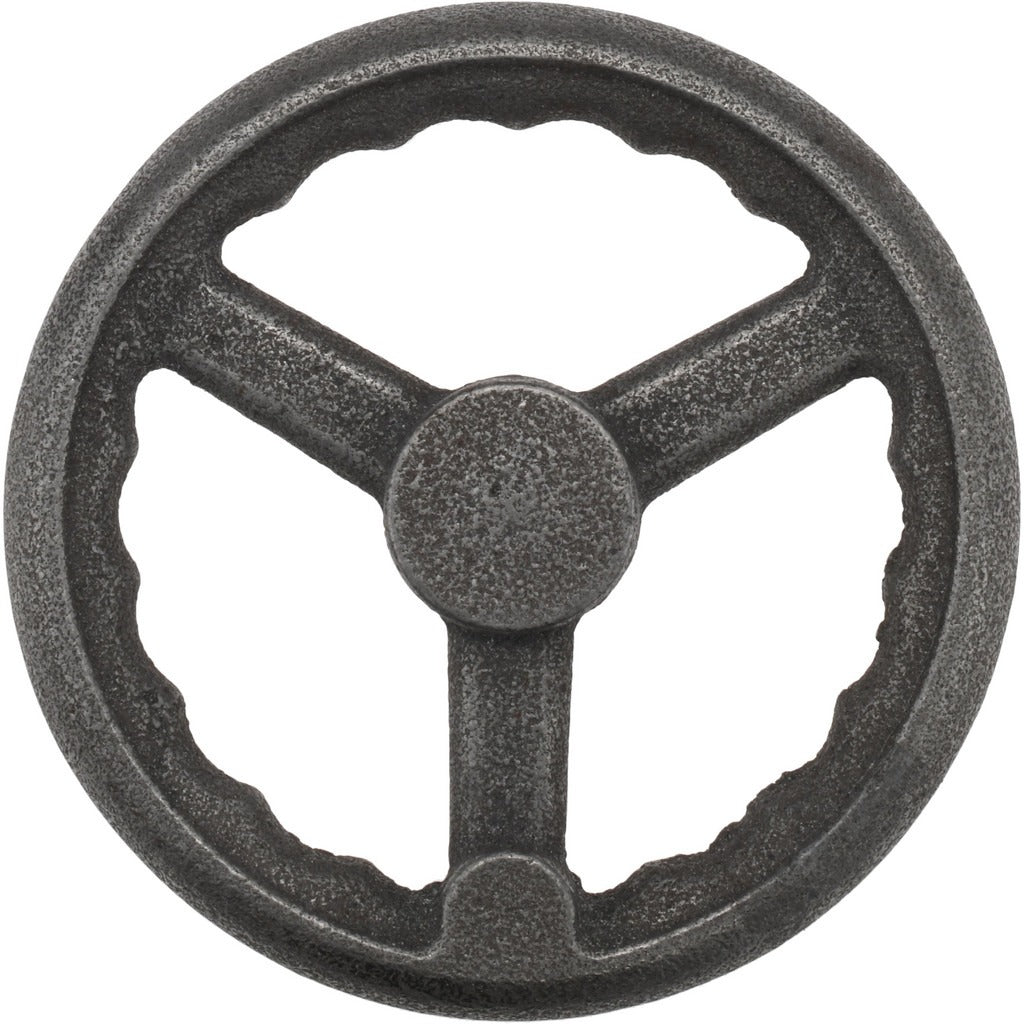

Gibraltar CIHW-8-STR-G Spoked Straight Handwheel 8 Inch

Product Description

The GIBRALTAR CIHW-8-STR-G is a spoked straight handwheel with a plain finish, designed for manual valve and equipment control in industrial and mechanical applications. The wheel measures 8 inches in diameter with a 1.5-inch wheel thickness and features three spokes for a balanced grip surface. The hub is cast iron with a fine grain material grade, offering solid, long-term durability in demanding service environments. This handwheel is a standard component installed by pipefitters, millwrights, and maintenance technicians on valves, presses, and other manually operated machinery.

This handwheel is suited for use in industrial facilities, manufacturing plants, and mechanical rooms where manual actuation of valves or equipment is required. Its plain finish and straight spoke configuration make it appropriate for general-purpose service across a wide range of valve types and machine interfaces. The 8-inch diameter provides adequate leverage for operators working with moderate to high-resistance valve stems or shafts.

Key Features

• 8-inch handle diameter for sufficient manual leverage on valve stems and shafts
• Three-spoke straight design for balanced load distribution during operation
• Iron hub with fine grain material grade for durability under repeated use
• 1.5-inch wheel thickness with 0.8-inch rim thickness for structural rigidity
• Plain finish suitable for general industrial environments
• Hub diameter of 1.8 inches to accommodate standard bore and keyway configurations

Compatibility

Designed as a general-purpose replacement or OEM-style handwheel for manually operated industrial valves, presses, and mechanical equipment requiring an 8-inch straight spoked wheel with an iron hub.

Installation Notes

Installation is typically performed by a pipefitter, millwright, or maintenance mechanic. Before installation, isolate and de-energize the associated valve or equipment and relieve any system pressure or load. Ensure the hub bore and keyway dimensions match the mating shaft before mounting. Secure the handwheel per the equipment manufacturer's fastener specifications using appropriate hand tools.
