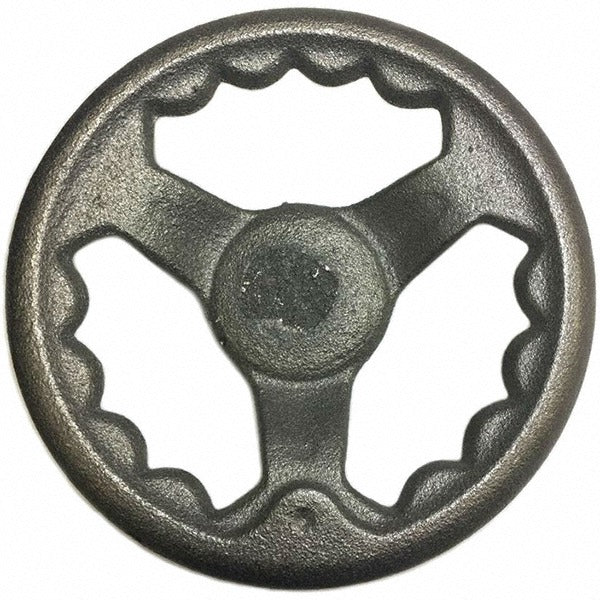

Gibraltar CIHW-7500-6-G Spoked Offset Handwheel 6 Inch

Product Description

The GIBRALTAR CIHW-7500-6-G is a spoked offset handwheel designed for manual valve and equipment control applications across industrial and trade settings. Built with an iron hub and fine grain material construction, this handwheel features an offset spoke configuration that positions the grip away from the mounting surface, reducing knuckle clearance issues in tight installations. The 6-inch diameter provides sufficient leverage for operating valves, machine controls, and similar mechanisms. The plain finish leaves the metal surface uncoated, making it suitable for environments where additional finishing or painting will be applied, or where bare metal is acceptable.

This handwheel is used in plumbing, HVAC, industrial machinery, and fluid control applications where a reliable, manually operated wheel grip is needed. The offset design is particularly useful when mounting hardware or adjacent components would obstruct a standard flush-mount handwheel. It fits common valve stem and shaft configurations found in commercial and industrial equipment rooms, mechanical rooms, and manufacturing environments. Installation is performed by maintenance technicians, plumbers, pipefitters, and millwrights.

Key Features

• Offset spoke design improves hand clearance in tight mounting locations
• 6-inch diameter for effective manual torque and grip
• 3-spoke configuration reduces weight while maintaining structural rigidity
• Iron hub construction provides durability under repeated use
• Plain finish accommodates field painting or coating as needed
• Fine grain material grade for consistent dimensional accuracy

Compatibility

Designed as an OEM-style replacement or direct-fit handwheel for valves, manual controls, and machinery requiring a 6-inch offset spoked wheel with an iron hub.

Installation Notes

Installation is typically performed by a licensed pipefitter, plumber, or maintenance technician. Before installing or replacing the handwheel, shut off flow to the associated valve and depressurize the line per standard lockout/tagout procedures. Verify that the hub bore and keyway dimensions match the valve stem or shaft before mounting. Secure the handwheel to the shaft using the appropriate fastener and confirm free rotation before returning the system to service.
