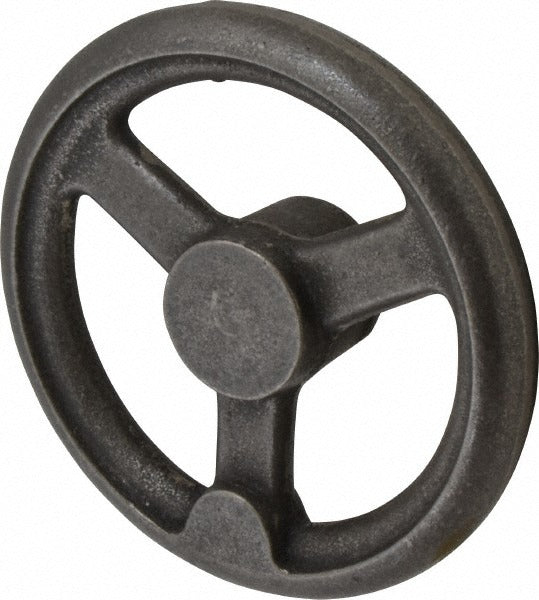

Gibraltar CIHW-6-STR-G 6 Inch Spoked Straight Handwheel

Product Description

The GIBRALTAR CIHW-6-STR-G is a spoked straight handwheel designed for manual valve and equipment control in industrial and trade applications. Built with a fine-grain iron hub and a plain finish, this handwheel measures 6 inches in handle diameter and features 3 evenly spaced spokes for a secure grip and balanced operation. The rim thickness is 0.7 inches and the overall wheel thickness is 1.3 inches. It is a direct-mount component used wherever manual rotational control is required on valves, machine tools, or process equipment.

This handwheel is suited for light industrial, HVAC, plumbing, and mechanical equipment applications where a compact, plain-finish wheel is specified. The 1.5-inch hub diameter accommodates standard shaft fitments common in valve actuators and manual control assemblies. Installers working on process piping, HVAC air handlers, or industrial machinery will find this a straightforward replacement or new-installation component.

Key Features

• 6-inch handle diameter for adequate leverage during manual operation
• 3-spoke straight design provides balanced grip and reduces weight compared to solid wheels
• Iron hub with fine-grain material grade for durability under repeated use
• 1.5-inch hub diameter fits standard shaft and valve stem sizes
• Plain finish suitable for indoor and light-duty industrial environments
• Compact wheel thickness of 1.3 inches fits in tight equipment clearances

Compatibility

Designed as an OEM-style replacement or direct-installation handwheel for manual valves, machine tools, and process equipment requiring a straight-spoke, 6-inch diameter wheel with a 1.5-inch iron hub.

Installation Notes

Installation is typically performed by millwrights, pipefitters, or HVAC technicians working on manual valve assemblies or equipment controls. Shut off and lock out all pressure and power to the associated valve or equipment before removing or installing the handwheel. Verify shaft diameter and keyway configuration match the hub bore before mounting. Secure all fasteners per equipment manufacturer specifications.
