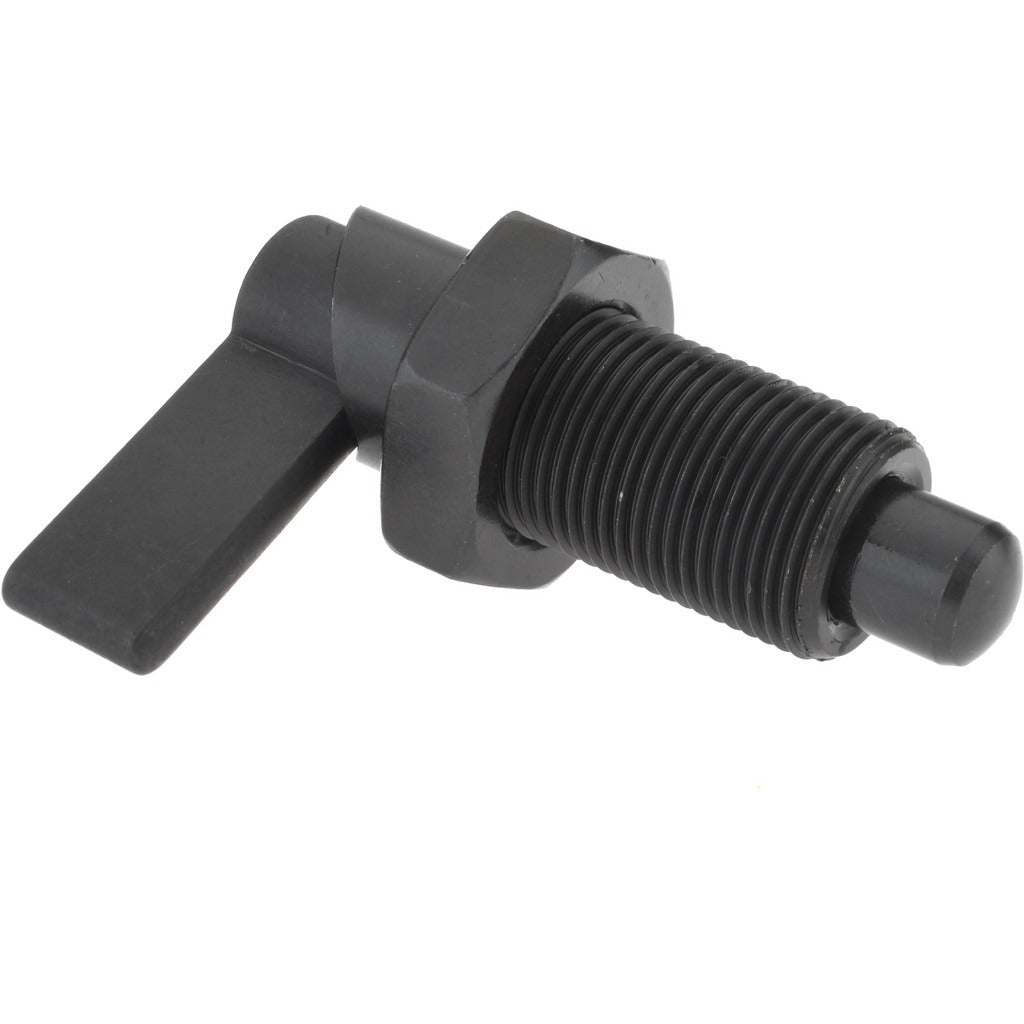

Gibraltar CAMG-244-G Cam Action Indexing Plunger M20x1.5

Product Description

The GIBRALTAR CAMG-244-G is a straight cam action indexing plunger designed for precision positioning and locking applications in industrial machinery and equipment. The plunger operates via a cam mechanism that allows smooth engagement and disengagement without the need for threading in or out. Built from stainless steel with a natural finish, this plunger suits environments where corrosion resistance and durability are required. Key specs include an M20x1.5 thread size, a 12mm plunger projection, an initial end force of 20 newtons, and a final end force of 60 newtons. Licensed machinists, millwrights, and mechanical technicians are the typical installers.

This indexing plunger is suited for use in jigs, fixtures, machine tool tables, and assembly equipment where repeatable positioning is critical. The 50mm handle allows manual actuation without additional tooling. With a 20mm body diameter and a 35mm body length, it fits into standard bored housings or threaded mounting points common in light to medium industrial machine frames. Its stainless steel construction makes it appropriate for wash-down environments or applications requiring resistance to mild corrosives.

Key Features

• Straight cam action allows quick engagement and release without thread rotation
• M20x1.5 thread size for secure, standardized mounting
• 12mm plunger projection and 12mm plunger diameter for consistent indexing depth
• Initial end force of 20 newtons and final end force of 60 newtons for reliable locking
• Stainless steel construction with natural finish for corrosion resistance
• 50mm handle length enables manual actuation without tools

Compatibility

Designed as an OEM-style or aftermarket replacement indexing plunger for industrial jigs, fixtures, and positioning equipment that accept an M20x1.5 threaded plunger with a 20mm body diameter.

Installation Notes

Installation is performed by licensed machinists or mechanical technicians. Power down and de-energize any machinery before installing or replacing this plunger. Thread the plunger into the prepared M20x1.5 tapped bore and tighten to the machine manufacturer's specified torque using appropriate wrenches. Verify full plunger engagement and smooth cam action before returning equipment to service.
