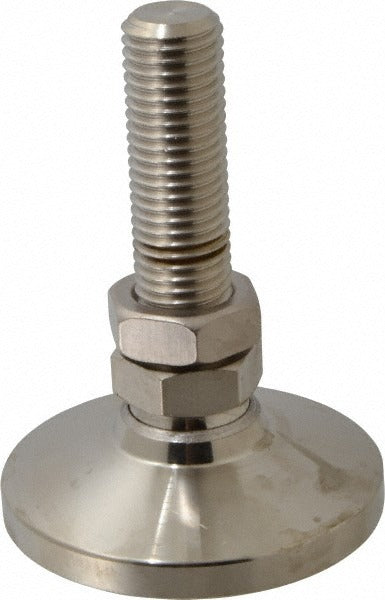

Gibraltar BSW-5N-G Studded Pivotal Leveling Mount 22000 Lb

Product Description

The GIBRALTAR BSW-5N-G is a studded pivotal leveling mount designed to support and precisely level heavy equipment in industrial and commercial applications. Built with a steel pad and steel stud, this mount handles load capacities up to 22,000 lb while allowing angular adjustment through its pivotal design. The base measures 4 inches in diameter and the overall length is 5-3/8 inches. The bolt thread size is 1-8. This type of mount is typically installed by millwrights, maintenance technicians, or mechanical contractors working on stationary equipment installations.

This leveling mount is suited for use under heavy machinery, equipment bases, frames, and skids in industrial, manufacturing, and commercial facility environments. Its pivotal design compensates for uneven floors by allowing the pad to self-adjust to the mounting surface angle, distributing load evenly across the base. The steel construction makes it appropriate for demanding environments where durability and high load ratings are required.

Key Features

• 22,000 lb load capacity for heavy-duty equipment support
• Pivotal pad design allows angular adjustment to compensate for uneven surfaces
• 4 inch diameter steel base pad provides stable, broad contact with the floor
• Steel stud construction for strength and durability under sustained loads
• 1-8 bolt thread size for standard hardware compatibility
• Overall length of 5-3/8 inches for moderate height adjustment range

Compatibility

Designed as a direct-installation leveling mount for heavy industrial equipment bases, machinery frames, and skids requiring a 1-8 threaded stud mount interface with a 4 inch base footprint.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Before installation, ensure the equipment is fully de-energized, depressurized, and safely supported. Use appropriately rated fasteners and verify that the mounting surface and equipment frame can support the rated load. Follow applicable facility safety standards and equipment manufacturer guidelines during installation.
