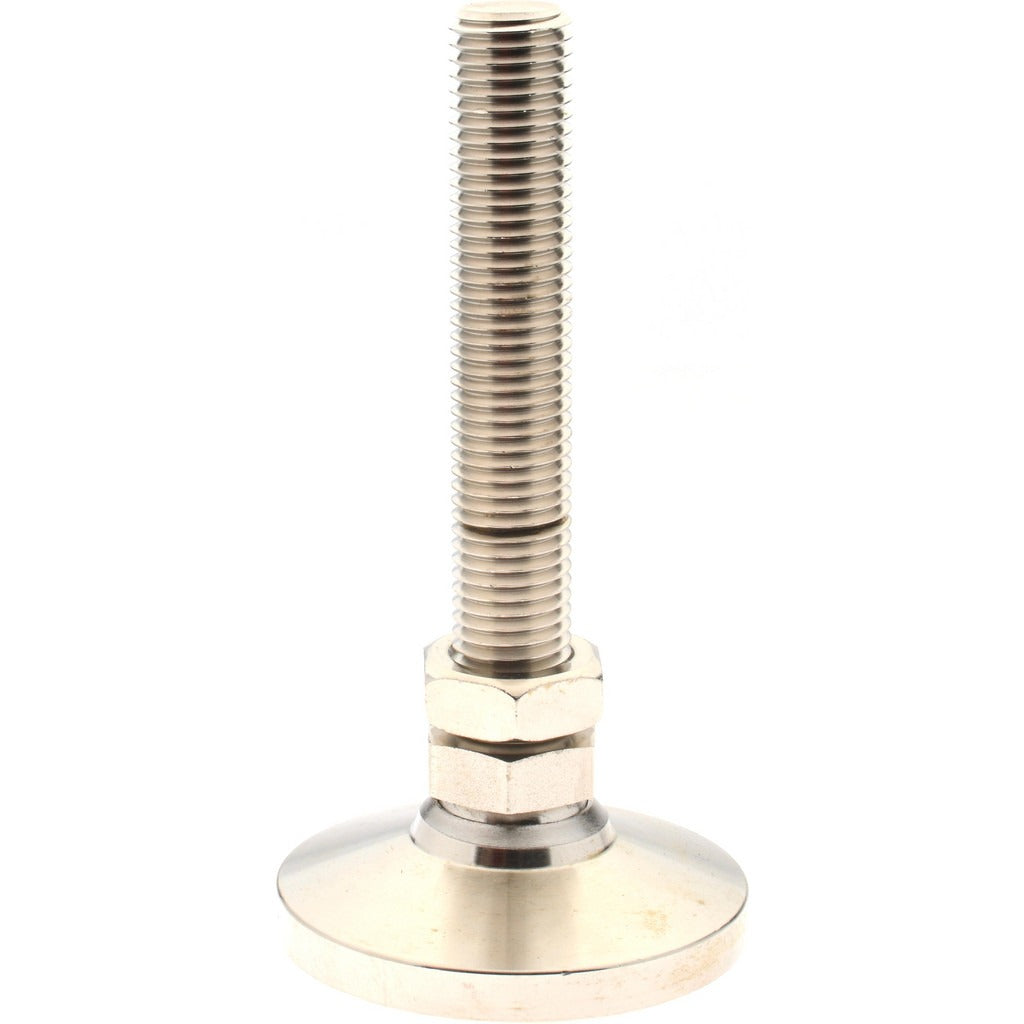

Gibraltar BSW-5AN-G Studded Pivotal Leveling Mount 22000 Lb

Product Description

The GIBRALTAR BSW-5AN-G is a studded pivotal leveling mount designed to support heavy stationary equipment while allowing angular adjustment to compensate for uneven or sloped surfaces. It features a 4-inch steel base pad and a steel stud with a 1-8 bolt thread size, delivering a rated load capacity of 22,000 pounds. At 7-7/8 inches in length, this mount provides substantial height for leveling applications where precision floor contact is critical. It is installed by maintenance technicians, millwrights, and industrial mechanics working with machinery, fabrication equipment, or heavy mechanical assemblies.

This leveling mount is suited for industrial and commercial applications where rigid, load-bearing floor support is required. The pivotal design accommodates surface irregularities without transferring uneven stress to the equipment frame, making it appropriate for use on concrete pads, shop floors, and similar fixed surfaces. Its all-steel construction handles demanding environments where plastic or composite mounts would not hold up under sustained load.

Key Features

• 22,000 lb rated load capacity for heavy-duty industrial equipment support
• Pivotal base design compensates for uneven or angled mounting surfaces
• 4-inch diameter steel base pad distributes load across the contact area
• Steel stud with 1-8 bolt thread for secure integration with equipment frames
• 7-7/8 inch overall length provides substantial leveling range
• All-steel construction suited for demanding shop and industrial environments

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for heavy industrial machinery, fabrication equipment, and mechanical assemblies requiring a studded pivotal mount with a 1-8 thread and 4-inch base diameter.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance mechanic. Before installing or adjusting, power down and de-energize any connected equipment and relieve any hydraulic or pneumatic pressure where applicable. Thread the stud into the equipment base to the appropriate engagement depth and adjust the pivotal pad until full, even contact with the floor surface is achieved. Verify load rating is not exceeded by the total supported weight before returning equipment to service.
