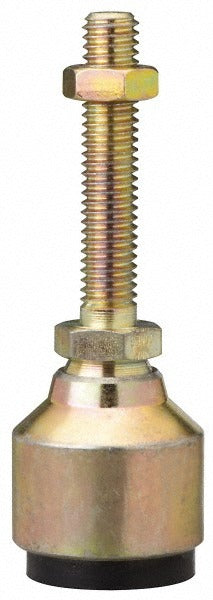

Gibraltar BSW-4L-G Studded Leveling Mount 3/4-10 Thread

Product Description

The GIBRALTAR BSW-4L-G is a studded leveling mount designed to support and level machinery, equipment bases, and fabricated frames. It features a 3/4-10 threaded stud and a 3-inch diameter zinc pad, providing a rated load capacity of 325 pounds. The overall length is 4.125 inches with a stud length of 2 inches. Built from zinc stud and zinc pad materials, this mount resists corrosion and provides stable footing on shop floors, production lines, and equipment pads. Industrial maintenance technicians and millwrights install this type of hardware during equipment alignment and leveling tasks.

The BSW-4L-G is suited for industrial and commercial applications where precise equipment leveling is required. Common installations include machine bases, workbenches, conveyor supports, and fabricated steel frames. The 3/4-10 thread size and 1-1/16 hex configuration are compatible with standard leveling foot hardware setups. This mount is packaged individually and ordered in single-unit increments.

Key Features

• 325 lb load capacity for heavy-duty leveling applications
• 3/4-10 threaded stud for secure engagement with machine bases and frames
• 3-inch base diameter zinc pad for stable, corrosion-resistant footing
• 2-inch stud length with 4.125-inch overall length for standard leveling clearance
• 1-1/16 hex size for wrench adjustment during leveling
• Zinc stud and zinc pad construction for corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-fit leveling mount for industrial machinery, equipment bases, and fabricated frames requiring a 3/4-10 threaded studded leveling foot.

Installation Notes

Installation is performed by millwrights, maintenance mechanics, or industrial technicians. Power down and de-energize any connected equipment before adjusting or installing leveling mounts. Use a wrench sized to the 1-1/16 hex to tighten or adjust the stud position. Verify load distribution across all mounting points before returning equipment to service.
