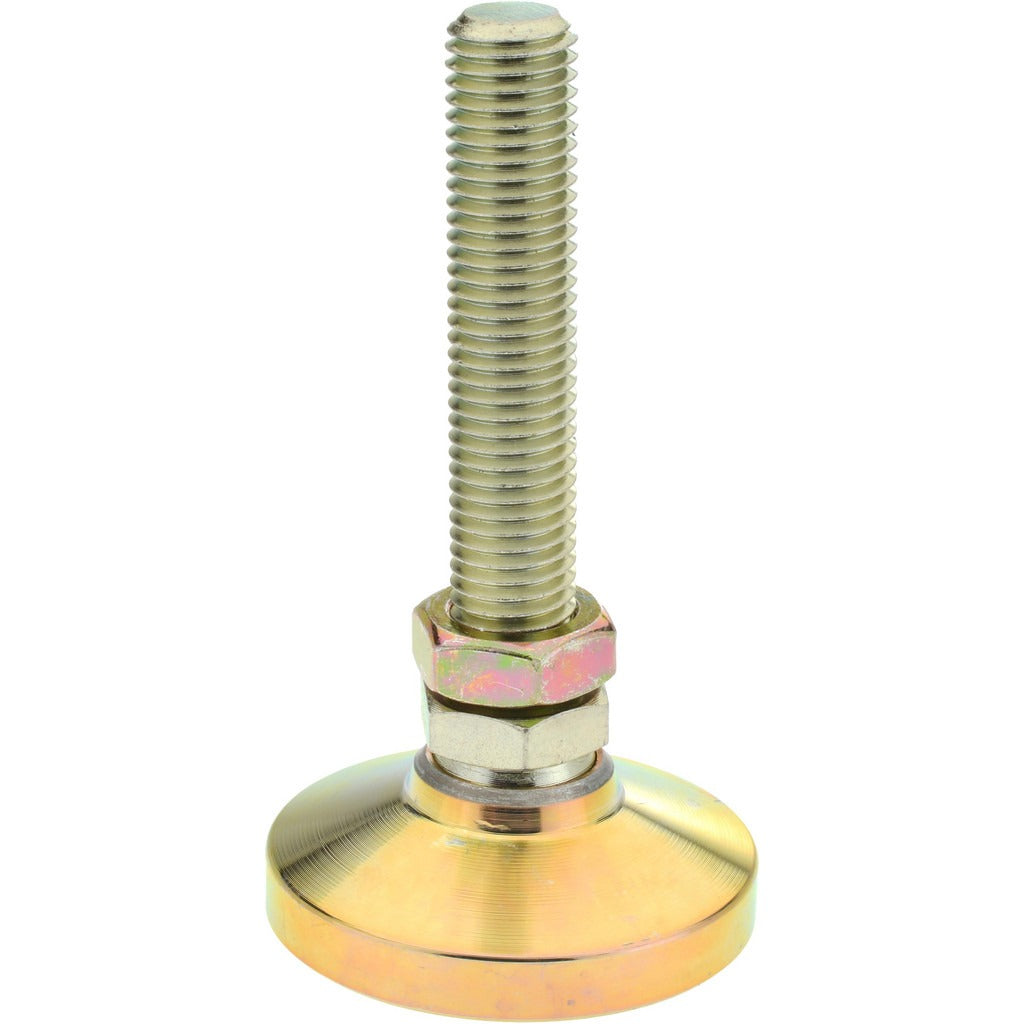

Gibraltar BSW-4A-G Studded Pivotal Leveling Mount 7400 Lb

Product Description

The GIBRALTAR BSW-4A-G is a studded pivotal leveling mount designed to provide stable, adjustable support for heavy industrial equipment and machinery. Built with a steel pad and steel stud, this mount accommodates a load capacity of 7,400 pounds, making it suited for demanding shop-floor and plant applications. The pivotal base design allows the mount to self-adjust to uneven floor surfaces, distributing load evenly and reducing stress on equipment feet. At 5.5 inches in length with a 3-inch base diameter and a 3/4-10 bolt thread, it installs quickly into standard machine bases. Maintenance technicians, millwrights, and facilities technicians commonly install this type of mount during equipment leveling and alignment work.

This leveling mount is used in industrial, commercial, and manufacturing environments where heavy stationary equipment requires precise leveling on concrete or steel floor surfaces. Typical applications include machine tool bases, compressors, pumps, conveyors, and other floor-mounted equipment that demands vibration isolation and height adjustment. The steel construction makes it appropriate for environments where durability and high load ratings are priorities.

Key Features

• 7,400 lb load capacity suitable for heavy industrial equipment
• Pivotal base design self-adjusts to uneven or sloped floor surfaces
• 3/4-10 bolt thread size for compatibility with standard machine bases
• 3-inch base diameter steel pad provides broad, stable contact area
• 5.5-inch overall length allows for meaningful height adjustment range
• All-steel construction for durability in demanding plant environments

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial machinery and equipment bases requiring a 3/4-10 threaded stud and a 3-inch diameter foot pad.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using standard hand tools and a torque wrench. Before installing or adjusting leveling mounts, ensure equipment is de-energized and any hydraulic or pneumatic systems are depressurized. Thread the stud into the machine base by hand first to confirm thread engagement before applying torque. Use a precision level across the equipment surface to verify alignment after all mounts are set.
