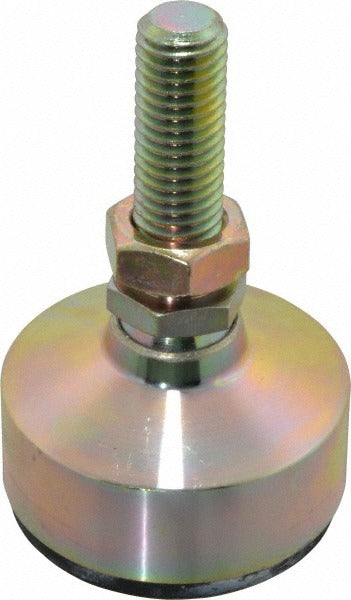

Gibraltar BSW-3M-G Studded Leveling Mount 5/8-11

Product Description

The GIBRALTAR BSW-3M-G is a studded leveling mount designed for industrial and commercial equipment positioning applications. It features a 5/8-11 threaded stud and supports a load capacity of 440 pounds, making it suited for stabilizing heavy machinery, workstations, and fabricated frames on uneven surfaces. The mount consists of a zinc stud and zinc pad for corrosion resistance in light-duty environments. With a 7/8-inch hex drive on the stud, adjustment is straightforward using standard hand tools. This type of hardware is commonly installed by millwrights, equipment technicians, and industrial maintenance trades.

This leveling mount is used in manufacturing plants, assembly areas, machine shops, and commercial facilities where precision leveling of equipment bases is required. The 2.5-inch base diameter distributes load across the mounting surface and reduces point pressure. The 3-7/8-inch overall length provides adequate height adjustment range for typical equipment feet applications. It is packaged and sold individually and is appropriate for both new equipment installation and replacement of worn or damaged leveling feet.

Key Features

• 440-pound load capacity suitable for heavy equipment stabilization
• 5/8-11 thread size for compatibility with standard threaded equipment bases
• Zinc stud and zinc pad construction for corrosion resistance
• 2.5-inch base diameter for stable load distribution
• 7/8-inch hex size allows adjustment with standard wrenches
• 3-7/8-inch overall length with a 2-inch stud length for installation flexibility

Compatibility

Designed as an OEM-style replacement or new-install leveling mount for equipment bases and machine frames using a standard 5/8-11 threaded mounting configuration.

Installation Notes

Installation is typically performed by millwrights or equipment maintenance technicians. Before installing or adjusting leveling mounts, de-energize and lockout any powered equipment per applicable OSHA lockout/tagout procedures. Use a 7/8-inch wrench or socket to thread the stud into the equipment base and adjust the pad height as needed to achieve level. Do not exceed the rated 440-pound load capacity per mount.
