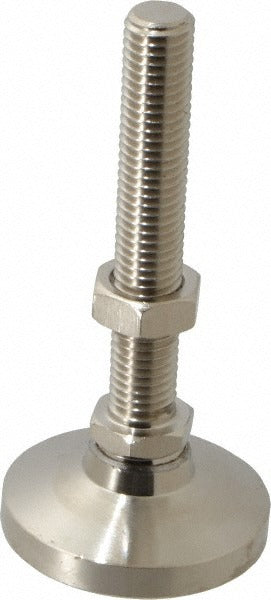

Gibraltar BSW-3AN-G Studded Pivotal Leveling Mount 6000 Lb

Product Description

The GIBRALTAR BSW-3AN-G is a studded pivotal leveling mount rated for 6,000 pounds of load capacity. It features a steel stud and a steel pad base designed to support and level heavy equipment in industrial and commercial settings. The base diameter measures 2.5 inches, and the overall length is 5.25 inches. The pivoting action allows for angular adjustment to compensate for uneven mounting surfaces, maintaining stable, level contact under load. This type of mount is typically installed by millwrights, maintenance technicians, or mechanical contractors working on machinery alignment and equipment leveling applications.

This leveling mount is suited for use in manufacturing facilities, mechanical rooms, and industrial environments where heavy equipment must be securely positioned on concrete, steel, or similar hard surfaces. The threaded stud design allows the mount to be threaded into a tapped hole or secured with a nut, providing height adjustment during installation. Applications include machine bases, workbenches, conveyor supports, and other industrial equipment requiring rigid, adjustable footing.

Key Features

• 6,000 pound load capacity supports heavy industrial and commercial equipment
• Pivoting pad design accommodates angular variation in mounting surfaces
• Steel stud with 5/8-11 bolt thread for secure threaded engagement
• Steel pad base provides durable, wear-resistant contact surface
• 2.5 inch base diameter provides stable footprint under load
• 5.25 inch overall length allows for adequate height adjustment range

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial machinery and equipment requiring a 5/8-11 threaded stud with a pivoting steel pad base.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Before installation, ensure the equipment is de-energized and any hydraulic or pneumatic systems are depressurized and locked out per site safety procedures. The stud threads into a tapped hole or is secured with a jam nut to set leveling height; use a level and appropriate wrenches to achieve correct alignment before tightening. Do not exceed the rated 6,000 pound load capacity.
