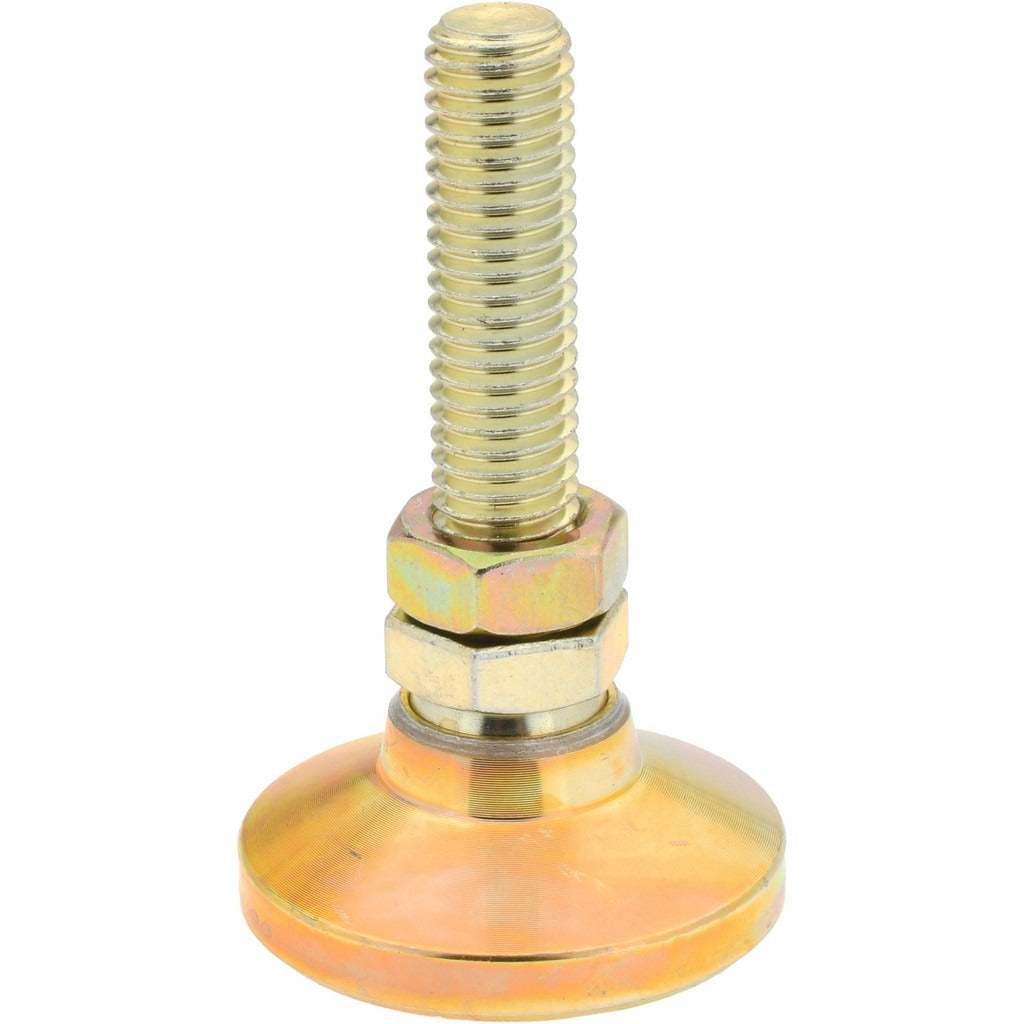

Gibraltar BSW-2Z-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR BSW-2Z-G is a studded pivotal leveling mount rated for up to 5,000 pounds of load capacity. It features a steel stud and steel pad construction, providing durable, adjustable support for machinery, equipment frames, and industrial base applications. The pivoting pad design allows the mount to compensate for uneven floor surfaces while maintaining stable contact. With a 1-7/8 inch base diameter and a 1/2-13 bolt thread, this mount installs quickly into standard threaded holes and suits a wide range of industrial and mechanical leveling tasks. Technicians and millwrights use this type of mount to level and support stationary equipment where floor surface variation is a factor.

The BSW-2Z-G is suited for industrial, commercial, and light manufacturing environments where heavy equipment requires precise leveling and vibration isolation. Typical applications include machinery bases, conveyor supports, pump skids, compressor frames, and similar stationary installations where load distribution and floor contact stability are critical. The 5,000 lb load rating makes it appropriate for medium to heavy-duty equipment support scenarios.

Key Features

• 5,000 lb load capacity for medium to heavy-duty equipment support
• Pivotal pad design accommodates uneven or sloped floor surfaces
• 1/2-13 bolt thread for compatibility with standard threaded mounting holes
• Steel stud and steel pad construction for industrial durability
• 1-7/8 inch base diameter provides stable ground contact
• 3-1/8 inch overall length suits typical machinery base clearance requirements

Compatibility

Designed as an OEM-style leveling mount for industrial machinery bases, equipment frames, and support structures requiring a 1/2-13 threaded stud and up to 5,000 lb load capacity.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during machinery setting or re-leveling operations. Shut down and de-energize all connected equipment before adjusting or replacing leveling mounts. Thread the stud into the prepared mounting hole and adjust height as needed to achieve level position, using appropriate wrenches for the 1/2-13 thread. Verify load capacity requirements against the total supported equipment weight before finalizing installation.
