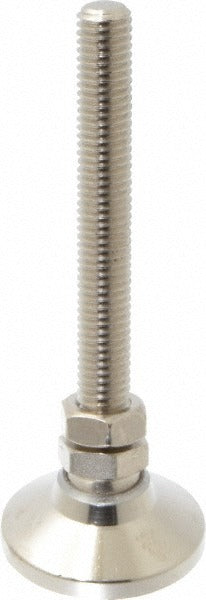

Gibraltar BSW-2AN-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR BSW-2AN-G is a studded pivotal leveling mount designed to support and level industrial equipment, machinery bases, and fabricated frames. It features a pivoting steel pad that self-adjusts to uneven floor surfaces, keeping the mount in full contact and distributing load evenly. The stud is a 1/2-13 thread, which is a common fastener size for machine bases and structural frames. With a rated load capacity of 5,000 pounds, this mount handles heavy stationary equipment. The base diameter is 1-7/8 inches and the overall length is 5-1/8 inches. Weighing 0.58 pounds, it is compact and easy to handle during installation. This mount is typically installed by millwrights, maintenance technicians, and mechanical contractors.

This leveling mount is suited for use in industrial, commercial, and light manufacturing settings where equipment must be precisely leveled on concrete or steel flooring. It is appropriate for applications such as compressor bases, pump skids, HVAC equipment pads, electrical enclosure frames, and other heavy machinery requiring stable, adjustable footing. The pivoting pad feature makes it especially useful where floor surfaces are not perfectly flat or where minor angular misalignment is present between the equipment base and the floor.

Key Features

• 5,000 lb load capacity supports heavy industrial and commercial equipment
• Pivoting steel pad self-aligns to uneven or sloped floor surfaces
• 1/2-13 threaded stud fits standard machine base hardware
• 1-7/8 inch base diameter for a compact footprint
• 5-1/8 inch overall length provides substantial leveling range
• All-steel construction for durability in demanding environments

Compatibility

Designed as a standard studded pivotal leveling mount suitable for machinery bases, equipment frames, and fabricated structures requiring a 1/2-13 threaded mount with a 5,000 lb load rating.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Before installing, ensure the equipment is de-energized and safely supported. Thread the stud into the tapped hole on the equipment base and adjust height as needed before final tightening. Verify load distribution across all mounts before returning equipment to service.
