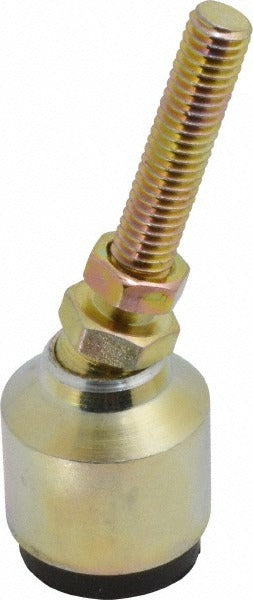

Gibraltar BSW-1M-G Studded Leveling Mount 3/8-16 100lb

Product Description

The GIBRALTAR BSW-1M-G is a studded leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial fixtures. It features a 3/8-16 threaded stud and accepts a standard 5/8-inch hex wrench for height adjustment. The mount delivers a 100-pound load capacity and is constructed with both a zinc stud and zinc pad for corrosion resistance in light industrial environments. The overall assembled length measures 3.5 inches, with a stud length of 2 inches and a base diameter of 1.25 inches. Maintenance technicians, millwrights, and equipment installers use this type of mount to level benches, light machinery, and support frames on uneven surfaces.

This leveling mount suits a wide range of light-duty industrial and commercial applications, including workbench leveling, equipment base adjustment, and vibration-isolation footing on concrete or steel surfaces. Its compact base diameter and standard thread size make it a practical fit for replacement or new-installation applications where a threaded stud foot is specified. The zinc construction is appropriate for dry or mildly humid indoor settings.

Key Features

• 3/8-16 threaded stud for compatibility with standard tapped mounting holes
• 100-pound load capacity per mount for light-duty support applications
• Zinc stud and zinc pad construction for corrosion resistance
• 1.25-inch base diameter provides a stable footing footprint
• 2-inch stud length with 3.5-inch overall assembled length
• 5/8-inch hex size allows adjustment with a standard wrench

Compatibility

Designed as an OEM-style replacement or new-installation studded leveling foot for equipment and fixtures requiring a 3/8-16 threaded mount with a zinc pad base.

Installation Notes

Installation is performed by threading the stud into a pre-tapped 3/8-16 hole in the equipment base or mounting bracket. Use a 5/8-inch wrench on the hex to set and lock the desired height. De-energize and stabilize any equipment before adjusting or replacing leveling mounts. Do not exceed the rated 100-pound load per mount when specifying quantity for a given application.
