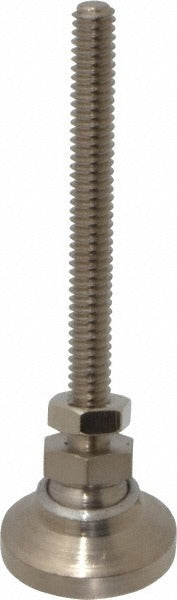

Gibraltar BSW-0AN-G Studded Pivotal Leveling Mount 1000 Lb

Product Description

The GIBRALTAR BSW-0AN-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment, and industrial assemblies. The pivoting stud allows for angle compensation on uneven surfaces, ensuring the base pad maintains full contact with the floor or mounting surface. Built with a steel stud and steel pad, this mount handles a rated load capacity of 1,000 pounds. At 3-3/16 inches in length and a 1-inch base diameter, it fits into tight mounting spaces while delivering reliable load-bearing performance. Maintenance technicians and equipment installers use these mounts when leveling production machinery, conveyors, or other floor-mounted equipment.

This leveling mount is suited for light to medium industrial applications where precise leveling and vibration isolation are required. The 1/4-20 bolt thread size makes it compatible with standard tapped mounting holes found on a wide range of equipment bases and machine frames. It is commonly installed on manufacturing equipment, HVAC curb assemblies, pump bases, and similar trade applications where surface variation must be compensated without shimming.

Key Features

• 1,000 lb rated load capacity for reliable support of heavy equipment
• Pivotal stud design compensates for angular misalignment on uneven surfaces
• Steel stud and steel pad construction for durability in industrial environments
• 1/4-20 bolt thread size compatible with standard machine mounting patterns
• Compact 1-inch base diameter fits tight or confined mounting locations
• 3-3/16 inch overall length provides adequate adjustment range for leveling tasks

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for equipment with 1/4-20 tapped mounting feet, suitable for a broad range of light to medium industrial machinery and equipment bases.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or mechanical contractors using standard hand tools. Power down and de-energize all connected equipment before installing or adjusting leveling mounts. Thread the stud into the equipment base by hand first, then tighten with a wrench to the equipment manufacturer's specified torque. Verify load distribution across all mounting points before returning the equipment to service.
