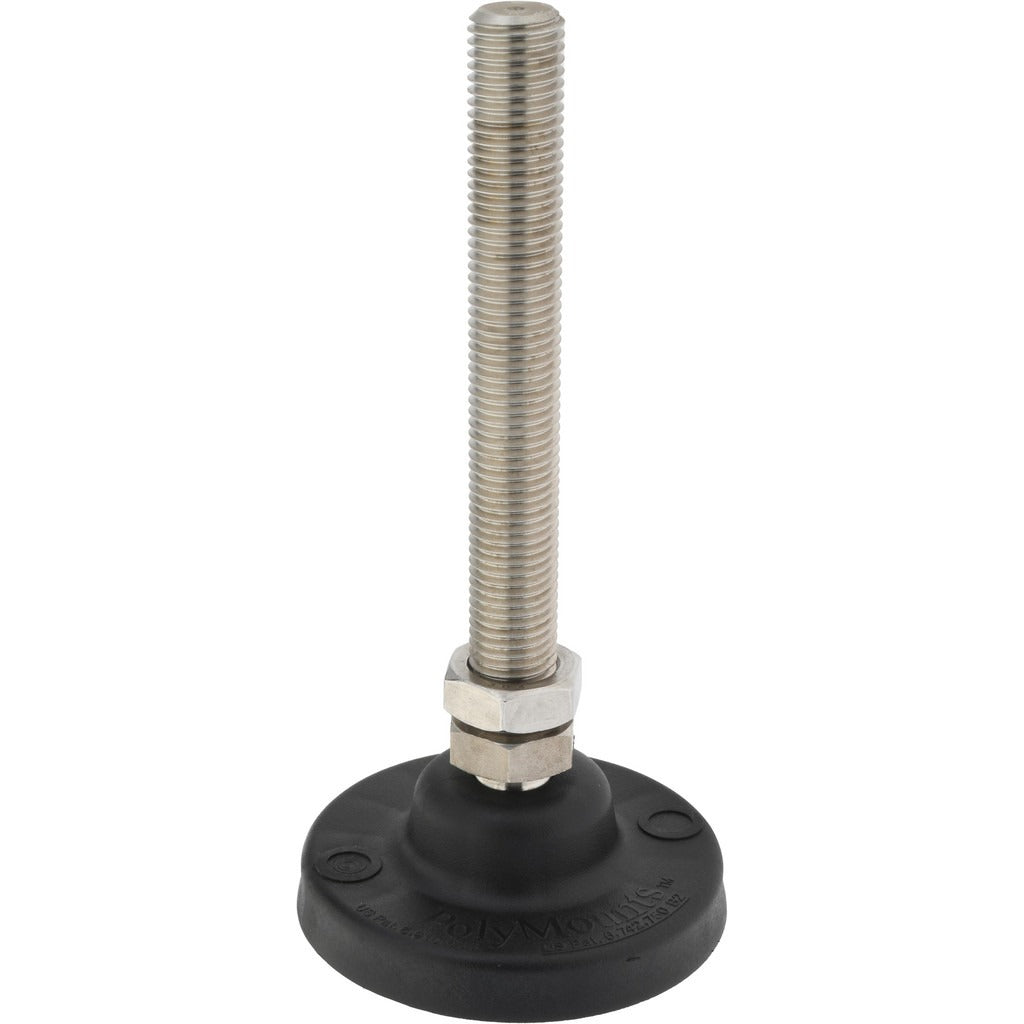

Gibraltar BSNYLE58-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLE58-G is a studded pivotal leveling mount designed for heavy-duty industrial and commercial equipment positioning. It features a stainless steel stud paired with a nylon pad base, allowing for angular adjustment to compensate for uneven mounting surfaces. With a rated load capacity of 10,000 pounds and a 5-inch base diameter, this leveling mount is built for demanding static-load applications where vibration isolation and precise leveling are required. The 1-8 bolt thread size accommodates standard heavy-duty fastener hardware. Maintenance technicians, millwrights, and equipment installers rely on this type of mount for machinery anchoring and alignment work.

This leveling mount suits industrial equipment installations including machine tools, compressors, pumps, conveyors, and heavy fabrication equipment. The pivotal nylon pad base allows the mount to self-align under load, making it practical in environments where floor surfaces are not perfectly flat. At 10 and one-quarter inches in total length, it provides meaningful height adjustment clearance for leveling and shimming applications in both new installations and equipment repositioning scenarios.

Key Features

• 10,000 lb static load capacity for heavy industrial equipment support
• Stainless steel stud resists corrosion in wash-down or high-humidity environments
• Nylon pad base provides pivotal self-alignment to compensate for uneven floors
• 5-inch base diameter distributes load across a wide footprint
• 1-8 bolt thread size for compatibility with standard heavy-duty fastener hardware
• 10.25-inch length delivers adequate height range for leveling adjustments

Compatibility

Designed as an OEM-style leveling mount for heavy industrial machinery, fabrication equipment, and commercial mechanical equipment requiring high-capacity adjustable support feet.

Installation Notes

Installation is typically performed by millwrights or equipment technicians following the equipment manufacturer's leveling procedure. De-energize and lock out all equipment before mounting or adjusting leveling feet. Use a calibrated torque wrench when tightening the stud to the equipment base plate, and verify level with a precision machinist level before final lock-down. Do not exceed the rated 10,000 lb load capacity.
