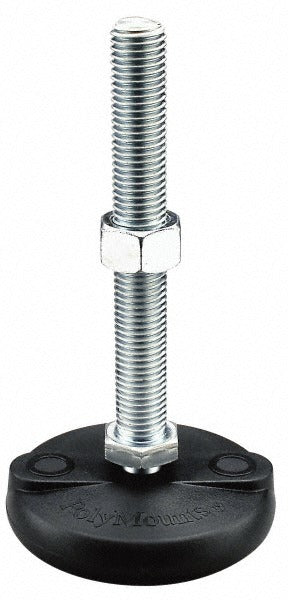

Gibraltar BSNYLD34-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLD34-EL-G is a studded pivotal leveling mount designed to support and level heavy industrial and commercial equipment. The mount features a stainless steel stud with a 3/4-10 bolt thread size and delivers a rated load capacity of 5,000 pounds. The elastomer pad base measures 3 inches in diameter and absorbs vibration while protecting floor surfaces. Overall length is 5 inches. Licensed millwrights, maintenance technicians, and equipment installers commonly specify this mount for machinery leveling applications where corrosion resistance and high load ratings are required.

This leveling mount is suited for use on machine tools, fabrication equipment, packaging machinery, and other heavy industrial equipment requiring precise floor leveling and stability. The pivotal design allows for angular adjustment to compensate for uneven floor surfaces. The elastomer pad prevents direct metal-to-metal contact between the equipment base and the floor, reducing transmitted vibration and protecting finished concrete or steel floor surfaces during long-term service.

Key Features

• 5,000 lb rated load capacity for heavy-duty industrial applications
• 3/4-10 stainless steel stud for corrosion resistance and durability
• 3 inch diameter elastomer pad base absorbs vibration and protects floor surfaces
• Pivotal design accommodates angular adjustment on uneven floors
• 5 inch overall length provides leveling range for equipment base alignment

Compatibility

Designed as a direct-fit leveling mount for industrial and commercial machinery requiring a 3/4-10 stud thread and up to 5,000 lb per-mount load support. Consult equipment manufacturer specifications to confirm thread size and load rating requirements before installation.

Installation Notes

Installation is typically performed by millwrights or qualified maintenance technicians. De-energize and lock out all energy sources on the equipment before installing or adjusting leveling mounts. Standard hand tools and a torque wrench suitable for 3/4-10 fasteners are required. Ensure the equipment base plate hole pattern and thread engagement depth are compatible with this stud before applying load.
