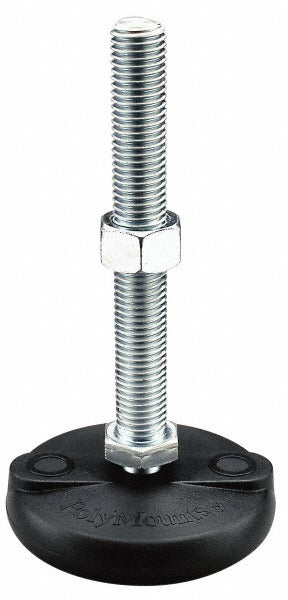

Gibraltar BSNYLC34-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLC34-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment, and industrial assemblies. The mount features a stainless steel stud with a 5/8-11 bolt thread and an elastomer pad base that absorbs vibration and compensates for uneven floor surfaces. Rated at 5,000 pounds load capacity, it handles demanding industrial and commercial applications. The pivotal design allows the base pad to self-level against non-flat mounting surfaces, reducing stress on fasteners and improving equipment stability. Machinists, millwrights, and maintenance technicians install these mounts during equipment placement or realignment procedures.

This leveling mount is suited for use in manufacturing facilities, workshops, and mechanical rooms where precise leveling and vibration isolation are required. The elastomer pad protects flooring surfaces and dampens operational vibration transmitted from motors, compressors, pumps, and similar rotating equipment. The 3-inch base diameter and 5-inch overall length make it appropriate for mid-size machinery requiring a compact footprint with substantial load support. It is installed as a standalone leveling foot or as a replacement mount on equipment that uses 5/8-11 threaded stud hardware.

Key Features

• 5,000 pound load capacity for heavy machinery and industrial equipment support
• Pivotal base self-levels against uneven or non-flat floor surfaces
• Elastomer pad absorbs vibration and protects flooring from direct metal contact
• Stainless steel stud resists corrosion in wet or humid environments
• 5/8-11 bolt thread is a common industrial fastener size for broad hardware compatibility
• 3-inch base diameter provides a stable footprint without excessive space requirements

Compatibility

Designed as an OEM-style replacement or new-installation leveling foot for industrial machinery and equipment using 5/8-11 threaded stud mounting hardware.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or equipment installers. Power down and de-energize all connected equipment before adjusting or replacing leveling mounts. Thread the stud into the equipment base to the appropriate engagement depth and adjust the mount height before tightening the jam nut to lock the set position. Verify load distribution across all mounts before returning equipment to service.
