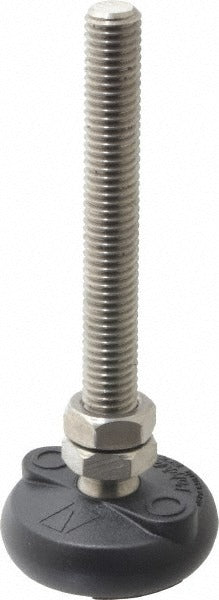

Gibraltar BSNYLB24-G Studded Pivotal Leveling Mount 4000 Lb

Product Description

The GIBRALTAR BSNYLB24-G is a studded pivotal leveling mount designed to provide stable, adjustable support for equipment and machinery in industrial and commercial settings. Rated for a 4,000 lb load capacity, it uses a 1/2-13 bolt thread stud and a 2-inch base diameter pad. Both the pad and stud are constructed from stainless steel, offering corrosion resistance in demanding environments. At 5 inches in length, it provides meaningful vertical adjustment range. The pivotal design allows the mount to compensate for uneven or angled mounting surfaces, maintaining level contact under load. This type of mount is installed by millwrights, maintenance technicians, and mechanical contractors.

This leveling mount is suited for positioning and leveling industrial equipment, HVAC units, compressors, pumps, and other mechanical systems that require a stable, corrosion-resistant base. The pivoting stainless steel pad allows flush contact on surfaces that are not perfectly flat or level, making it practical for installations on concrete pads, steel frames, or equipment skids. The 1/2-13 threaded stud interfaces with standard mounting holes found on a wide range of equipment bases and frames.

Key Features

• 4,000 lb rated load capacity for heavy equipment support
• Pivotal pad design compensates for uneven or angled mounting surfaces
• Stainless steel pad and stud construction for corrosion resistance
• 1/2-13 bolt thread size for compatibility with standard equipment mounting holes
• 2-inch base diameter pad for stable ground contact
• 5-inch overall length provides vertical positioning range

Compatibility

Designed as an OEM-style replacement or aftermarket leveling mount for industrial equipment, HVAC skid assemblies, pumps, and machinery frames requiring a 1/2-13 threaded stud leveling foot.

Installation Notes

Installation is typically performed by millwrights or mechanical technicians. De-energize and isolate any connected equipment before installing or adjusting leveling mounts. Use appropriate wrenches for the 1/2-13 stud thread and ensure the equipment frame or base plate is fully supported before making final adjustments. Verify that the mount is seated flush and the load is distributed evenly across all mounting points before returning the equipment to service.
