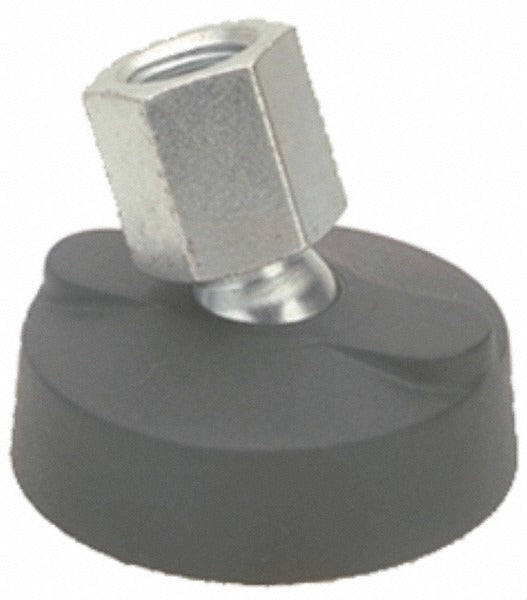

Gibraltar BSNYLB2-TEL-G Tapped Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLB2-TEL-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. The mount features a stainless steel stud, an elastomer pad base, and a 1/2-13 thread size, delivering a static load capacity of 4,000 pounds. The pivotal design allows the base to articulate and self-align on uneven surfaces, reducing stress on the stud and frame. At 1-5/8 inches overall length and a 2-inch base diameter, this leveling foot suits compact mounting footprints. Maintenance technicians and millwrights install this type of mount during equipment leveling and vibration isolation work.

This leveling mount is suited for stationary industrial equipment including machinery bases, workbenches, enclosures, and fabrication tables where precise leveling and floor contact are required. The elastomer pad provides vibration dampening and floor surface protection. The stainless steel stud construction offers corrosion resistance in light wash-down or humid environments. It is appropriate for both new equipment installation and replacement of worn or damaged leveling feet on existing machinery.

Key Features

• 4,000 lb static load capacity supports heavy industrial equipment
• Pivotal base self-aligns on uneven or slightly irregular floor surfaces
• Stainless steel stud (Grade 303) resists corrosion in demanding environments
• Elastomer pad dampens vibration and protects floor finish
• 1/2-13 tapped thread fits standard fastener and frame configurations
• Compact 2-inch base diameter suits tight equipment footprints

Compatibility

Designed as a standard-thread tapped pivotal leveling mount for industrial machinery, equipment bases, and fabrication frames using 1/2-13 thread mounting configurations.

Installation Notes

Installation is performed by millwrights or maintenance technicians using standard hand tools. The equipment must be de-energized and safely supported before leveling feet are adjusted or replaced. Thread engagement should be sufficient to carry the rated load without bottoming out the stud. Verify floor load capacity independently before installation on elevated or suspended surfaces.
