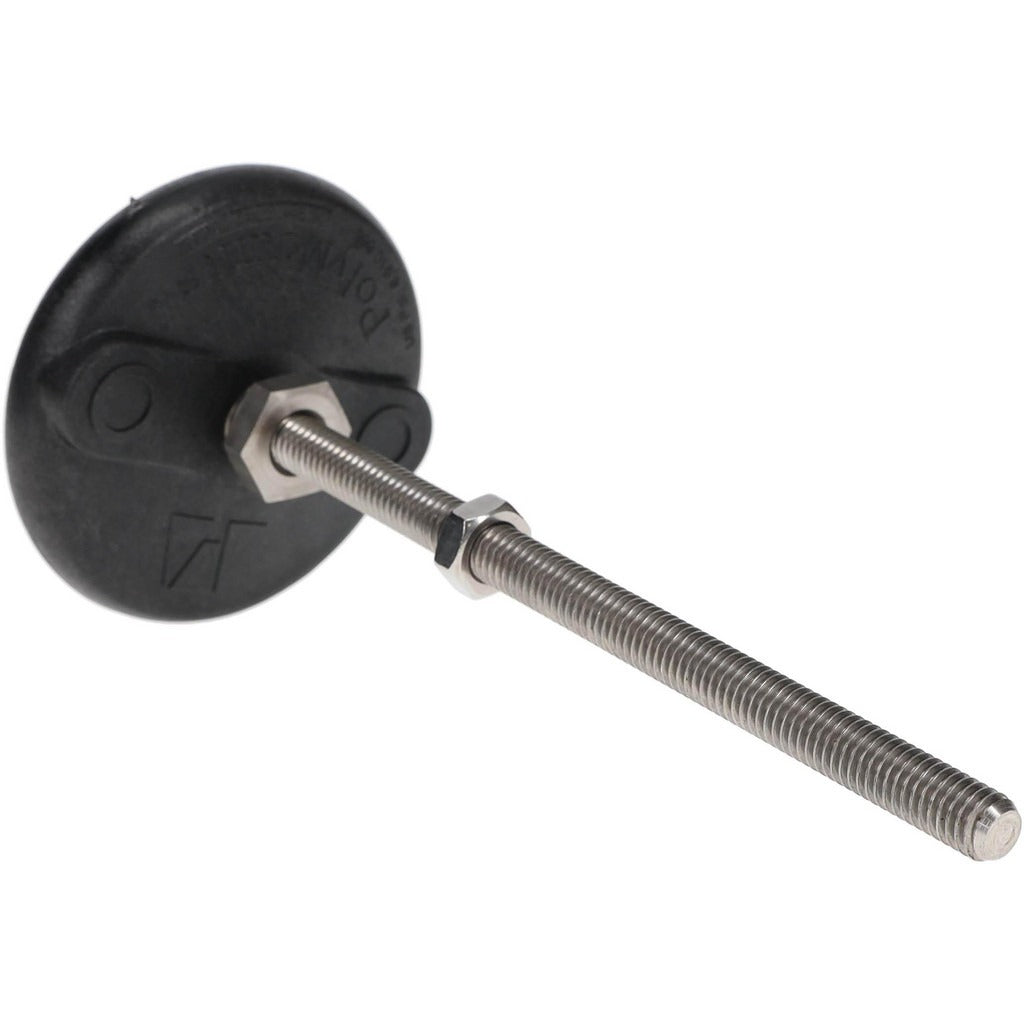

Gibraltar BSNYLA36-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLA36-G is a studded pivotal leveling mount rated for 5,000 pounds of load capacity. It features a stainless steel pad and a stainless steel stud with a 3/8-16 bolt thread size. The mount measures 3 inches in base diameter and 7 inches in length, giving it a stable footprint for heavy-duty leveling applications. The pivotal design allows angular adjustment to compensate for uneven surfaces, making it well suited for equipment alignment work. Maintenance technicians, millwrights, and industrial installers are the typical trades that specify this type of hardware.

This leveling mount is used in industrial and commercial settings where heavy machinery, enclosures, or structural frames must be leveled on concrete or steel floor surfaces. Applications include equipment pads, pump bases, compressor frames, control panel enclosures, and similar static installations where a rigid, adjustable foot is required. The stainless steel construction makes it appropriate for environments with moisture exposure, mild chemical contact, or food-adjacent conditions where corrosion resistance matters.

Key Features

• 5,000 lb load capacity for heavy-duty industrial and commercial equipment support
• Pivotal pad design accommodates angular misalignment on uneven mounting surfaces
• Stainless steel pad and stud for corrosion resistance in demanding environments
• 3/8-16 bolt thread size for compatibility with standard fastener hardware
• 3 inch base diameter distributes load and provides a stable footprint
• Compact 7 inch length suitable for low-profile equipment bases

Compatibility

Designed as an OEM-style leveling foot for use with industrial machinery bases, equipment frames, enclosures, and structural supports requiring a 3/8-16 studded mount with a 3 inch diameter pad.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during equipment commissioning or realignment. De-energize and lock out any equipment before adjusting or replacing leveling feet beneath live machinery. Use appropriate torque on the 3/8-16 stud to secure the mount without overloading the thread engagement. Verify the mounting surface can support the rated load before final tightening.
