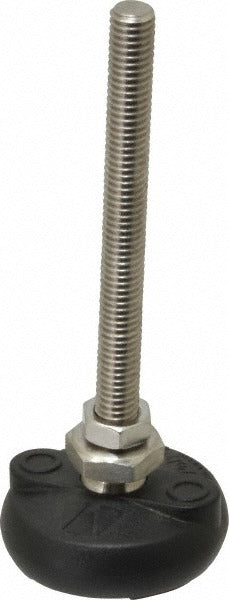

Gibraltar BSNYLA24-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLA24-G is a studded pivotal leveling mount designed to support and level industrial equipment, machinery bases, and fabricated assemblies. The pivoting pad self-adjusts to uneven surfaces, distributing load evenly and reducing stress on mounting points. It carries a rated load capacity of 4,000 pounds and features a 3/8-16 threaded stud for secure anchoring. The 2-inch base diameter keeps the footprint compact while maintaining stability. Both the pad and the stud are stainless steel construction, making this mount suitable for wet, corrosive, or washdown environments. Machinists, millwrights, and maintenance technicians typically install this hardware during equipment positioning and leveling work.

This leveling mount is used in light industrial, manufacturing, and mechanical assembly applications where precise floor-level adjustment is required. It suits stationary equipment such as workbenches, machine bases, frames, and enclosures that need vibration isolation or grade compensation. The pivotal pad design accommodates slight angular misalignment between the stud axis and the mounting surface, which is particularly useful on uneven concrete floors or sloped pads. Its stainless steel construction supports use in food processing, marine, and outdoor environments where corrosion resistance is a priority.

Key Features

• 4,000 lb rated load capacity for demanding industrial equipment support
• Pivoting pad self-levels on uneven or angled mounting surfaces
• Stainless steel pad and stud for corrosion resistance in wet or harsh environments
• 3/8-16 threaded stud for standard fastener compatibility
• 2-inch base diameter provides stable, compact footprint
• 5-inch overall length suits typical equipment leg and frame clearances

Compatibility

Designed as a standard-thread studded pivotal leveling mount compatible with equipment frames, machine bases, and fabricated assemblies using 3/8-16 threaded mounting points.

Installation Notes

Typically installed by millwrights, maintenance technicians, or equipment assemblers during machine positioning. Thread the stud into the equipment base or weldment to the desired height, then lock in place with a jam nut if vibration or drift is a concern. Ensure the mating threads in the equipment base are clean and properly tapped to 3/8-16 specification before installation. De-energize and fully support any equipment before adjusting leveling mounts under load.
