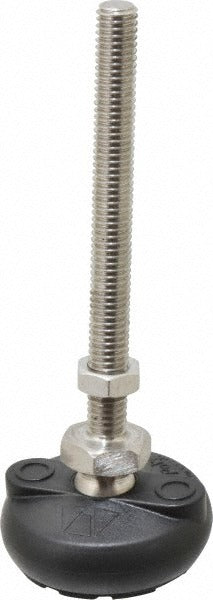

Gibraltar BSNYLA24-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLA24-EL-G is a studded pivotal leveling mount rated for loads up to 4,000 pounds. It combines a stainless steel stud with an elastomer pad base to provide both corrosion resistance and vibration-dampening contact at the mounting surface. The pivoting design allows the stud angle to self-adjust, compensating for uneven surfaces and keeping equipment level without shimming. At 5 inches in length and 2 inches in base diameter, it is a compact yet heavy-duty solution for industrial and commercial equipment positioning. Installation is handled by millwrights, maintenance technicians, and equipment installers working with stationary machinery, HVAC skids, compressors, and similar trade equipment.

This leveling mount is suited for use on production floors, mechanical rooms, and equipment pads where a rigid, adjustable support point is required. The elastomer pad protects finished floors and reduces transmitted vibration. The 3/8-16 bolt thread size is a common industrial standard, making this mount compatible with a wide range of OEM and custom equipment bases. It is appropriate for both light industrial and heavier commercial applications within its rated load capacity.

Key Features

• 4,000 lb static load capacity for heavy equipment support
• Stainless steel stud provides corrosion resistance in wet or chemically exposed environments
• Elastomer pad base reduces vibration transmission and protects mounting surfaces
• Pivotal design self-adjusts to compensate for surface irregularities
• 3/8-16 bolt thread size suits standard industrial equipment bases
• Compact 2-inch base diameter fits tight equipment footprints

Compatibility

Designed as a standard-thread leveling mount for industrial and commercial equipment requiring a 3/8-16 studded mount point with elastomer pad contact and pivoting adjustment capability.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians. De-energize and lockout all equipment before installing or adjusting leveling mounts. Use appropriate thread engagement depth to ensure full load-bearing capacity of the stud. Verify total load per mount point does not exceed the 4,000 lb rated capacity before final installation.
