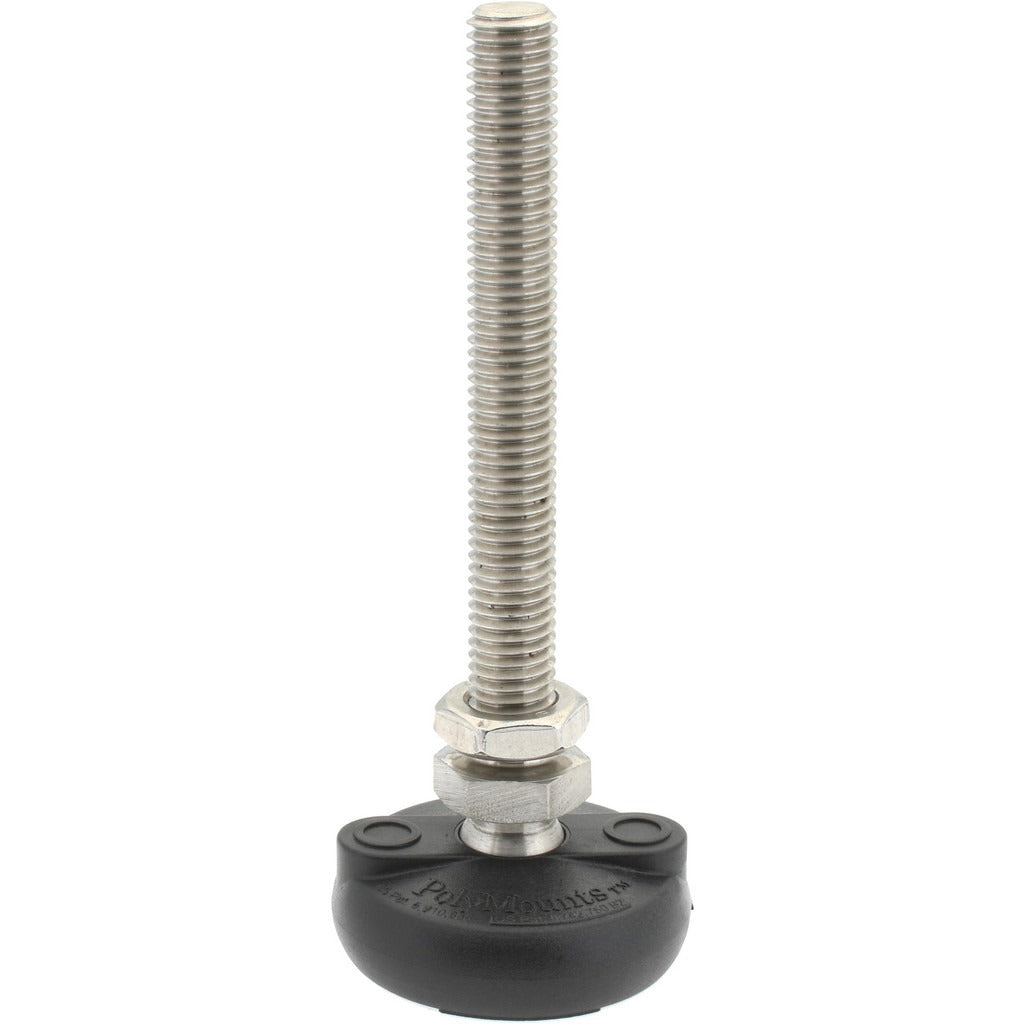

Gibraltar BSMNYLB24-G Studded Pivotal Leveling Pad M12

Product Description

The GIBRALTAR BSMNYLB24-G is a studded pivotal stud mount leveling pad designed for industrial machinery positioning and vibration isolation applications. It accepts an M12 bolt thread and provides a load capacity of 1818 kg, making it suitable for heavy equipment mounting where precise floor-level adjustment is required. The pivotal design allows the pad to self-adjust to uneven surfaces, maintaining full contact and stable load distribution. At 130 inches in overall length and with a 51 mm base diameter, this leveling pad suits a wide range of machine base configurations. Weighing 0.32 pounds, it is compact enough for close-tolerance installations.

This leveling pad is used in industrial, commercial, and manufacturing facility settings where machinery, enclosures, or structural frames require stable, adjustable footing on concrete or finished floors. It is commonly installed during initial equipment setup or when relocating machinery that demands precise leveling. Maintenance technicians and millwrights typically specify this style of mount for CNC equipment, compressors, conveyor frames, and other heavy stationary machinery requiring vibration dampening and height adjustment.

Key Features

• M12 bolt thread for direct stud-mount installation into machine bases
• 1818 kg load capacity supports heavy industrial equipment
• Pivotal pad design self-levels on uneven or sloped floor surfaces
• 51 mm base diameter provides stable floor contact footprint
• Compact 0.32-pound weight simplifies handling during install
• Sold individually — quantity 1 per package

Compatibility

Designed as an OEM-style replacement or direct-install leveling pad for industrial machinery and equipment frames requiring M12 stud mount footings with pivotal base adjustment.

Installation Notes

Installation is typically performed by millwrights or industrial maintenance technicians. Before installing, ensure the equipment is de-energized, de-pressurized, and safely supported. Thread the M12 stud into the machine base to the appropriate engagement depth, then adjust pad height to achieve level position before final lockdown. Consult applicable facility safety standards and equipment manufacturer guidelines for load and torque requirements.
