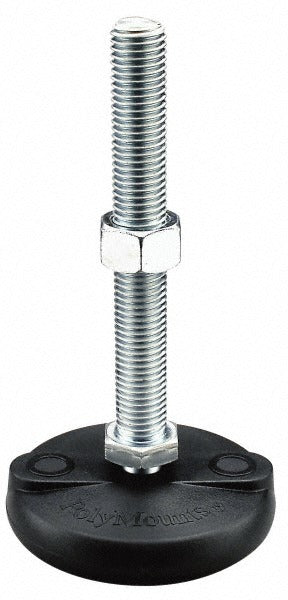

Gibraltar BNYLD34-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLD34-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for industrial equipment, machinery bases, and structural frames. Built with a steel stud and an elastomer pad, this mount handles up to 5,000 pounds of load capacity while absorbing vibration and protecting floor surfaces. The pivotal design allows the mount to self-adjust to uneven surfaces, maintaining a level base without shimming. At 5 inches in total length with a 3-inch base diameter, it fits a wide range of equipment feet and mounting applications. Installation is straightforward for millwrights, maintenance technicians, and industrial mechanics working with stationary equipment.

This leveling mount is suited for use in commercial and light industrial environments where equipment must be anchored securely to concrete or hard flooring. Common applications include compressors, pumps, generators, conveyors, and other trade equipment that requires vibration isolation and precise leveling. The 3/4-10 bolt thread size accommodates standard mounting configurations found across a broad range of machinery bases. Single-unit packaging makes it convenient for replacement or small-quantity installation work.

Key Features

• 5,000 lb load capacity for heavy-duty equipment support
• Pivotal design self-levels on uneven or slightly angled surfaces
• Elastomer pad reduces vibration transmission and protects flooring
• Steel stud construction for durability under sustained load
• 3/4-10 bolt thread size fits standard machinery mounting feet
• 3-inch base diameter provides stable footprint without large footprint requirements

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for stationary industrial and commercial equipment using a 3/4-10 threaded stud mounting configuration.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics. Power down and de-energize all equipment before replacing or adjusting leveling mounts. Ensure the mounting surface can support the rated load before tightening the stud into position. Verify thread engagement depth meets equipment manufacturer guidelines before returning the unit to service.
