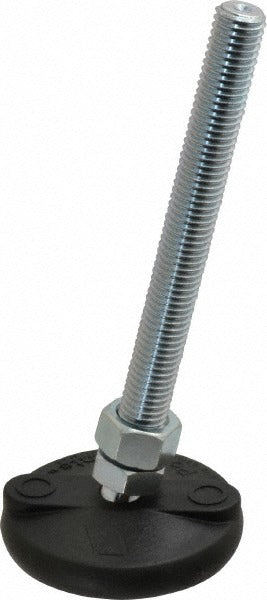

Gibraltar BNYLC36-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLC36-EL-G is a studded pivotal leveling mount rated for 5,000 pounds of load capacity. It features a 3-inch base diameter with an elastomer pad that allows for angular adjustment, absorbs vibration, and protects the mounting surface. The steel stud uses a 5/8-11 bolt thread size and the overall length is 7 inches. This type of mount is installed by millwrights, maintenance technicians, and equipment installers to level and stabilize industrial machinery, fabrication equipment, and heavy production fixtures on shop floors and facility surfaces.

This leveling mount is suited for heavy-duty industrial and commercial applications where precise machine leveling and floor protection are required. The elastomer pad pivots to compensate for uneven surfaces, keeping the load stable without damaging concrete or finished flooring. Common applications include leveling lathes, presses, conveyors, workbenches, and similar stationary equipment in manufacturing and maintenance environments.

Key Features

• 5,000 lb load capacity for heavy industrial equipment support
• 3-inch base diameter elastomer pad absorbs vibration and protects floor surfaces
• Pivotal design compensates for uneven or sloped mounting surfaces
• 5/8-11 steel stud thread for secure equipment attachment
• 7-inch overall length provides height adjustment range for leveling applications
• Steel stud construction for durability under sustained static and dynamic loads

Compatibility

Designed as an OEM-style leveling mount for industrial machinery, fabrication equipment, and heavy fixtures requiring a 5/8-11 threaded stud mount with a 3-inch base diameter elastomer pad.

Installation Notes

Installation is performed by millwrights or qualified maintenance personnel. Thread the stud into the equipment base to the appropriate depth before placing the machine on the mount. Adjust each mount incrementally to level the equipment, using a precision level as a reference. Ensure the machine frame is de-energized and stable before making leveling adjustments.
