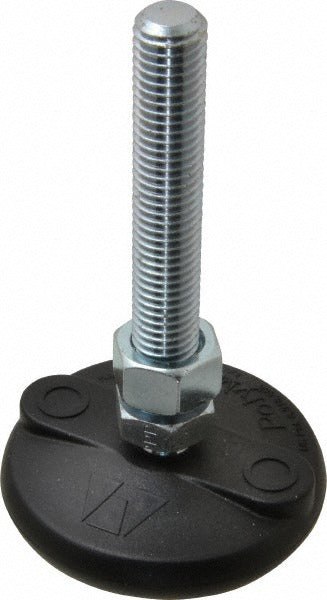

Gibraltar BNYLC34-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR BNYLC34-G is a studded pivotal leveling mount designed for industrial and commercial equipment positioning applications. It features a steel pad base and a steel stud, with a 5,000 lb static load capacity. The pivoting design allows for angular adjustment, enabling precise leveling on uneven floors or surfaces. The 5/8-11 bolt thread provides a secure connection to equipment frames or mounting plates. Millwrights, maintenance technicians, and equipment installers use this mount to stabilize machinery, workstations, and structural supports where floor leveling is required.

This leveling mount is suited for use in manufacturing facilities, warehouses, and commercial settings where heavy equipment must be anchored and leveled on concrete or steel floor surfaces. The 3 inch base diameter and 5 inch overall length make it appropriate for mid-size equipment frames requiring a compact, high-strength leveling point. It is typically installed in sets of four or more per equipment base to distribute load evenly across mounting points.

Key Features

• 5,000 lb load capacity per mount for heavy equipment support
• Pivotal base design allows angular adjustment for leveling on uneven surfaces
• Steel pad and steel stud construction for durability in industrial environments
• 5/8-11 bolt thread for compatibility with standard threaded mounting hardware
• 3 inch base diameter provides stable footprint in a compact form factor
• 5 inch overall length accommodates moderate height adjustment range

Compatibility

Designed as an OEM-style leveling mount for industrial machinery, workbenches, and equipment bases requiring a 5/8-11 studded leveling foot with a steel pad base.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians. Before installing or adjusting leveling mounts, ensure the equipment is de-energized and any hydraulic or pneumatic systems are depressurized. Thread the stud into the equipment base mounting hole to the appropriate engagement depth before positioning and adjusting for level. Use a calibrated level and adjust each mount in sequence to achieve uniform load distribution across all mounting points.
