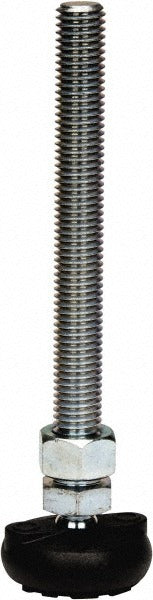

Gibraltar BNYLC26-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLC26-EL-G is a studded pivotal leveling mount designed to support and level heavy industrial equipment, machinery bases, and structural frames. It features a 5/8-11 threaded steel stud, a 2-inch base diameter, and a 7-inch overall length. The elastomer pad on the base absorbs vibration and protects the mounting surface. With a rated load capacity of 4,000 lb, this mount handles demanding static and dynamic load applications. It is installed by millwrights, maintenance technicians, and industrial trades in manufacturing, fabrication, and mechanical equipment settings.

This leveling mount is suited for use in industrial and commercial environments where precise equipment leveling and vibration isolation are required. Typical applications include machine tool bases, compressors, pumps, and production equipment that must remain level on concrete or steel flooring. The pivotal design allows the stud to articulate, accommodating minor surface irregularities without compromising load distribution.

Key Features

• 4,000 lb rated load capacity for heavy-duty equipment support
• 5/8-11 threaded steel stud provides strong, adjustable attachment
• 2-inch base diameter with elastomer pad for vibration dampening and surface protection
• 7-inch overall length allows a wide range of height adjustment
• Pivotal design accommodates minor floor irregularities
• Steel construction for durability in industrial environments

Compatibility

Designed as a standard-thread leveling foot for industrial machinery and equipment bases requiring a 5/8-11 stud mount configuration.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics. Before installation, ensure the equipment is de-energized and safely supported. Use appropriately sized wrenches to thread the stud into the equipment base and adjust the mount height to achieve level positioning. Lock the stud securely at the desired height before returning the equipment to service.
