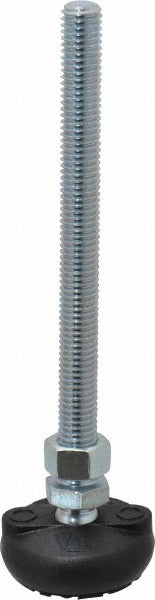

Gibraltar BNYLB26-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLB26-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The mount features a steel stud with a 1/2-13 bolt thread and an elastomer pad base that absorbs vibration and allows for minor angular adjustments on uneven surfaces. With a 4,000 lb load capacity and a 2-inch base diameter, this leveling mount suits heavy-duty trade and industrial applications where precise leveling and equipment isolation are required. Millwrights, maintenance technicians, and mechanical contractors install this type of hardware during equipment commissioning and repositioning tasks.

This leveling mount is suited for use in industrial facilities, commercial mechanical rooms, and manufacturing environments where equipment must be leveled on concrete or steel floors. Typical applications include supporting HVAC air handlers, compressors, pumps, generators, and other floor-mounted mechanical equipment. The elastomer pad base helps reduce transmitted vibration to the floor structure, making it appropriate for equipment that produces operational movement or minor dynamic loading. The 7-inch overall length provides adequate thread engagement and height adjustment for most standard base-frame installations.

Key Features

• 4,000 lb load capacity supports heavy floor-mounted equipment and machinery
• Elastomer pad base absorbs vibration and allows angular adjustment on uneven surfaces
• Steel stud construction with 1/2-13 bolt thread for secure engagement with equipment frames
• 2-inch base diameter provides stable ground contact footprint
• 7-inch overall length allows for height adjustment during leveling
• Pivotal design compensates for minor floor irregularities without shimming

Compatibility

Designed as an OEM-style leveling mount for floor-mounted industrial and commercial mechanical equipment requiring 1/2-13 threaded stud hardware and elastomer isolation at the base.

Installation Notes

Installation is typically performed by millwrights or mechanical contractors during equipment placement and commissioning. De-energize and lock out all equipment before positioning or adjusting leveling mounts under live machinery. Use a calibrated level and adjust each mount incrementally to distribute load evenly across all mounting points. Verify that the elastomer pad is fully seated on a clean, flat surface before tightening the stud to the equipment frame.
