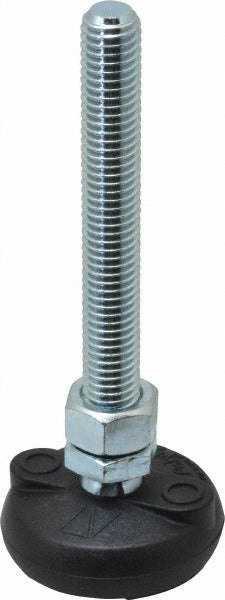

Gibraltar BNYLB24-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLB24-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment, and industrial fixtures. Built with a steel pad and steel stud, this mount handles a load capacity of 4,000 pounds, making it suitable for heavy-duty applications in manufacturing, fabrication, and mechanical service environments. The pivoting base design allows the foot to self-level on uneven floors, distributing load evenly and reducing stress on the mounting stud. The 1/2-13 bolt thread size provides a secure connection to equipment frames or base plates. Machinists, millwrights, and industrial maintenance technicians are the primary installers.

This leveling mount is commonly used in industrial and commercial settings where heavy equipment requires precise floor-level adjustment. Typical applications include machine tool bases, conveyor supports, workbench legs, compressors, and pump skids on concrete or steel flooring. The 2-inch base diameter and 5-inch length suit installations with limited clearance while still offering meaningful height adjustment range. Both indoor and outdoor installations are common where firm, level footing is required for stationary equipment.

Key Features

• 4,000 lb load capacity for heavy-duty machinery support
• Pivotal base self-levels on uneven or slightly sloped surfaces
• Steel pad and steel stud construction for durability in industrial environments
• 1/2-13 bolt thread size for compatibility with standard machine fasteners
• 2-inch base diameter provides stable footprint in tight spaces
• 5-inch overall length allows for height adjustment flexibility

Compatibility

Designed as a standard 1/2-13 studded pivotal leveling mount suitable for industrial machinery, equipment bases, and fabricated frames requiring adjustable floor-level support.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or industrial mechanics. De-energize and lock out all machinery before installing or adjusting leveling mounts under live equipment. Thread the stud into the tapped hole on the equipment base to the required depth and tighten the jam nut securely against the frame to lock the adjusted height. Verify that the load rating of the mount is not exceeded when calculating combined equipment weight and dynamic forces.
