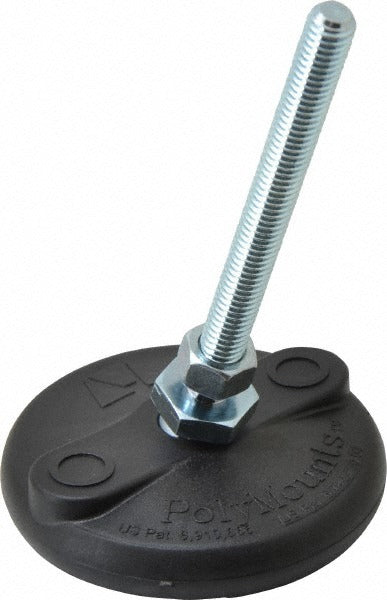

Gibraltar BNYLA34-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLA34-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment bases, and industrial assemblies. The mount features a 3-inch diameter base with an elastomer pad for vibration damping and floor protection, paired with a steel stud threaded at 3/8-16. It carries a rated load capacity of 5,000 pounds, making it suitable for heavy stationary equipment. The 5-inch overall length provides meaningful vertical adjustment range. Installation requires no special tooling beyond a standard wrench. This type of mount is commonly installed by millwrights, mechanical contractors, and maintenance technicians during equipment positioning and alignment work.

This leveling mount is used wherever industrial or commercial equipment requires a firm, level footing on hard floor surfaces. Typical applications include machine tools, compressors, pumps, conveyors, and other floor-mounted mechanical equipment. The elastomer pad at the base isolates minor vibration and prevents direct metal-to-floor contact, which helps protect finished or sealed concrete surfaces. The pivotal design allows the base to self-align to minor floor irregularities, maintaining consistent load distribution across the pad even when the floor surface is not perfectly flat.

Key Features

• 5,000 lb rated load capacity for heavy industrial equipment support
• 3-inch base diameter with elastomer pad for vibration damping and floor protection
• Pivotal base design self-aligns to minor floor surface variations
• Steel stud with 3/8-16 thread for secure equipment attachment
• 5-inch overall length provides vertical positioning range
• Compact 0.28 lb unit weight simplifies handling during installation

Compatibility

Designed as a general-purpose OEM-style leveling mount for floor-mounted industrial and commercial equipment requiring 3/8-16 threaded stud attachment points and a 3-inch base footprint.

Installation Notes

Installation is typically performed by millwrights or mechanical contractors during initial equipment placement or realignment. Before installing or adjusting leveling mounts, de-energize and lock out the equipment per applicable OSHA lockout/tagout procedures. Thread the stud into the equipment base to the required depth and tighten the jam nut if one is present before applying load. Do not exceed the rated 5,000 lb load capacity on any single mount point.
