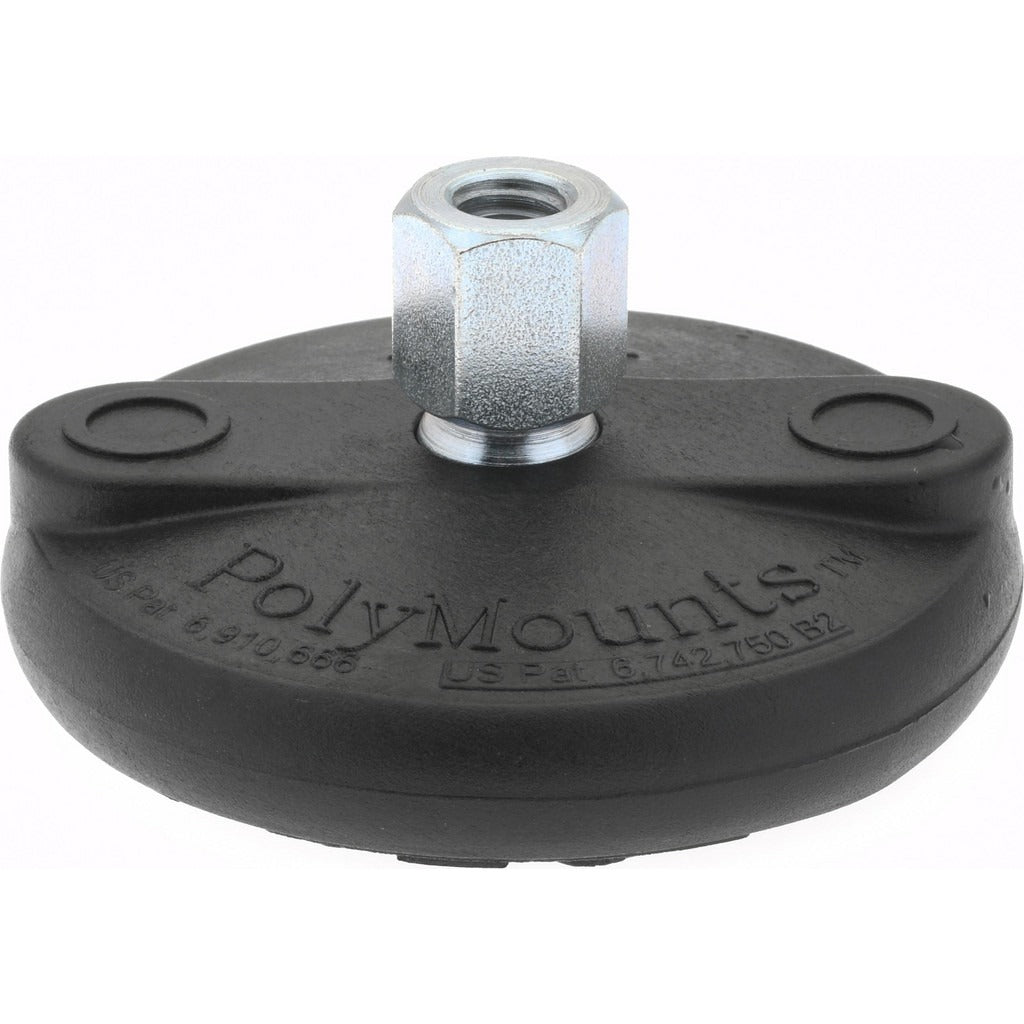

Gibraltar BNYLA3-TEL-G Tapped Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLA3-TEL-G is a tapped pivotal leveling mount designed to support and level industrial equipment, machinery, and fabricated assemblies on floor surfaces. The mount features a 3/8-16 threaded steel stud and an elastomer pad base that pivots to compensate for minor surface irregularities. Rated for 5,000 pounds of load capacity, it suits heavy-duty stationary equipment installations. The 3-inch base diameter distributes load across a wide footprint, and the overall height of 1-5/8 inches keeps the profile compact. Machinists, millwrights, and maintenance technicians typically specify this type of mount during equipment installation or alignment work.

This leveling mount is suited for use in manufacturing facilities, machine shops, and mechanical rooms where precise equipment leveling is required. It threads directly into tapped holes on equipment bases or mounting plates, allowing vertical height adjustment and pivotal pad movement. The elastomer pad protects flooring surfaces and absorbs minor vibration. It is appropriate for both initial equipment placement and periodic re-leveling during maintenance cycles.

Key Features

• 5,000 lb rated load capacity for heavy industrial equipment support
• 3/8-16 tapped thread for direct installation into equipment base holes
• Pivotal elastomer pad self-adjusts to uneven or slightly sloped floor surfaces
• 3-inch base diameter provides stable, wide load distribution
• Steel stud construction with 1214 material grade for durability
• Compact 1-5/8 inch overall length minimizes clearance requirements

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial equipment with 3/8-16 tapped mounting provisions requiring a pivotal, elastomer-padded base.

Installation Notes

Installation is performed by millwrights, machinists, or maintenance technicians using standard hand tools. Thread the steel stud into the equipment base to the desired height and lock in position per the equipment manufacturer's leveling procedure. Ensure the equipment is de-energized and mechanically secured before performing any leveling adjustments. Do not exceed the rated 5,000 lb load capacity of the mount.
