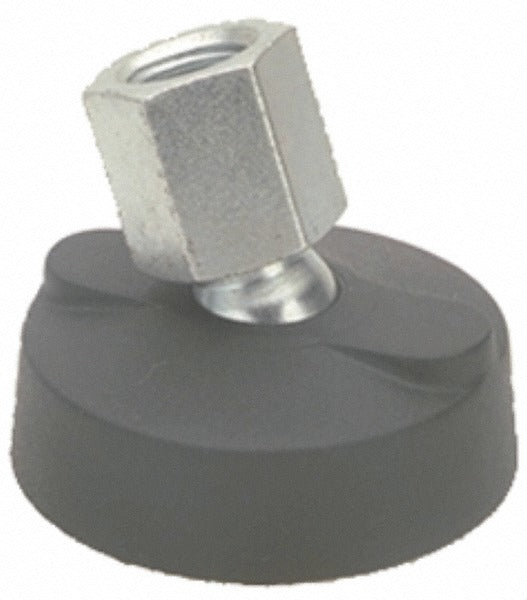

Gibraltar BNYLA3-T-G Tapped Pivotal Leveling Mount 3/8-16

Product Description

The GIBRALTAR BNYLA3-T-G is a tapped pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial workstations. Built with a steel stud rated to a 5,000 lb load capacity and a nylon pad base measuring 3 inches in diameter, this mount compensates for uneven floor surfaces by pivoting to maintain full contact with the ground. The 3/8-16 threaded stud allows straightforward installation into tapped mounting holes. At 0.22 pounds, it is a compact, lightweight component suited for repeated use in industrial and commercial maintenance applications. Millwrights, maintenance technicians, and equipment installers are the primary trades that specify and install this type of hardware.

This leveling mount is used in applications where heavy equipment, machine bases, or fabricated steel frames require precise leveling and vibration isolation from the floor. The pivoting action of the base pad is especially useful on concrete floors with minor surface irregularities or where equipment is repositioned periodically. The 3-inch base diameter distributes load effectively across the contact surface. Typical installation environments include manufacturing floors, mechanical rooms, and commercial kitchens where equipment stability and floor clearance adjustment are required.

Key Features

• 5,000 lb static load capacity for heavy-duty equipment support
• Pivotal base design allows the nylon pad to self-adjust on uneven floors
• 3/8-16 threaded steel stud for direct installation into tapped equipment feet
• 3-inch base diameter distributes load and reduces point pressure on flooring
• Nylon pad protects finished or coated floor surfaces from marring
• 1214 material grade steel stud for consistent thread engagement and durability

Compatibility

Designed as a standard tapped pivotal leveling mount for machinery, equipment frames, and fabricated bases using a 3/8-16 threaded mounting configuration.

Installation Notes

Installation is performed by millwrights or maintenance technicians using standard hand tools. De-energize and lock out all connected equipment before adjusting or replacing leveling mounts. Thread the stud into the tapped hole in the equipment base and adjust height as needed to achieve level positioning, then tighten the jam nut if present to lock the setting. Do not exceed the rated 5,000 lb load capacity per mount point.
