Gibraltar BNYLA24-EL-G Studded Pivotal Leveling Mount

Product Description

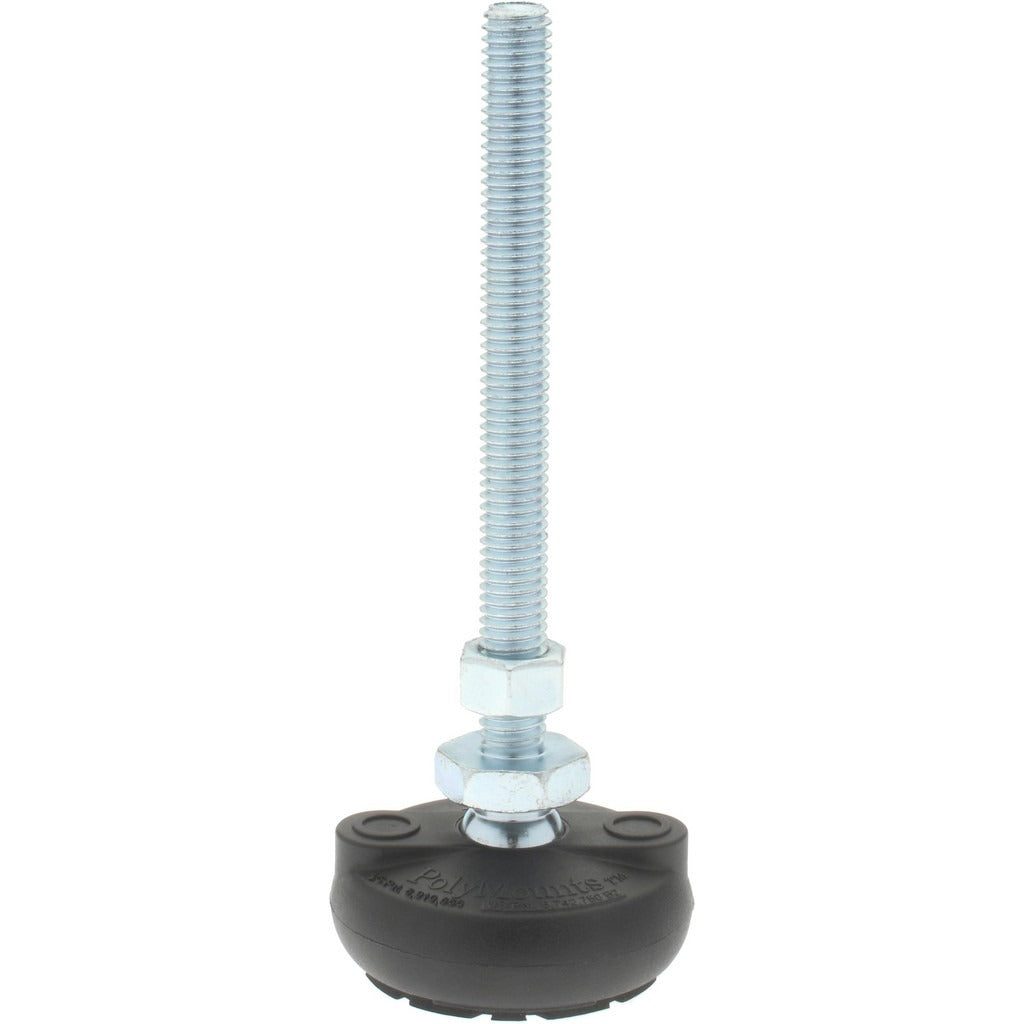

The GIBRALTAR BNYLA24-EL-G is a studded pivotal leveling mount designed to support and level heavy equipment, machinery, and structural assemblies in industrial and commercial installations. The mount features a 3/8-16 threaded steel stud, a 2-inch base diameter, and an overall length of 5 inches. With a rated load capacity of 4,000 lb, it is built for demanding static load applications where precise leveling adjustment is required. The elastomer pad integrated into the base provides vibration damping and protects flooring surfaces from point-load damage. HVAC technicians, millwrights, and mechanical contractors install these mounts during equipment placement and alignment procedures.

This leveling mount is suited for use under rooftop units, condensing units, air handlers, compressors, pumps, and other heavy mechanical equipment that requires a stable, adjustable footing on concrete, steel, or finished floor surfaces. The pivotal base design allows the mount to self-adjust to minor surface irregularities, maintaining full pad contact even on slightly uneven substrates. It is appropriate for both new installations and retrofits where existing equipment footing hardware is worn or inadequate.

Key Features

• 4,000 lb load capacity for heavy equipment support
• 3/8-16 threaded steel stud for secure attachment and height adjustment
• 2-inch base diameter with elastomer pad for vibration isolation and floor protection
• 5-inch overall length provides generous adjustment range
• Pivotal base self-adjusts to minor surface variations for full pad contact
• Steel stud construction for durability in commercial and industrial environments

Compatibility

Designed as an OEM-style replacement or aftermarket leveling foot for heavy equipment requiring a 3/8-16 threaded mount with up to 4,000 lb load capacity per foot.

Installation Notes

Installation is typically performed by HVAC technicians, millwrights, or mechanical contractors during equipment setting or realignment. De-energize and isolate all equipment before adjusting or replacing leveling mounts under load. Use appropriate lifting equipment to relieve load from the mount prior to installation or removal. Verify that the mounting surface can sustain the concentrated load and that all mounts are adjusted evenly to prevent equipment racking or stress on attached piping and conduit.
