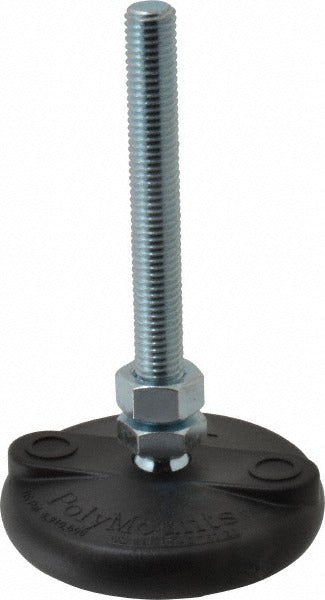

Gibraltar BMNYLB34-G Studded Pivotal Leveling Mount M12

Product Description

The GIBRALTAR BMNYLB34-G is a studded pivotal leveling mount designed to support and level industrial equipment, machinery bases, and fabricated frames. It features a steel stud and steel pad construction rated for a 2,270 kg load capacity, making it suitable for heavy stationary loads. The M12 bolt thread size provides a secure anchor point, and the pivoting action of the mount allows for angular adjustment to compensate for uneven floors or surfaces. At 130 mm in overall length and a 76 mm base diameter, it offers a compact footprint with substantial load-bearing capacity. Installers working in light industrial, commercial mechanical, or equipment-mounting applications will find this mount a straightforward fit for standard leveling tasks.

This leveling mount is used in applications where equipment must be precisely leveled on concrete floors, steel platforms, or fabricated equipment bases. Typical uses include leveling HVAC air handlers, compressor skids, pump bases, and general industrial machinery. The pivotal base design allows the mount to self-adjust slightly under load, reducing stress on the stud when the mounting surface is not perfectly flat. It is installed by fabricators, millwrights, and mechanical contractors during equipment setting and alignment work.

Key Features

• 2,270 kg load capacity for heavy stationary equipment support
• M12 bolt thread size for compatibility with standard metric fastener hardware
• Pivotal base design allows angular adjustment to compensate for uneven surfaces
• 76 mm base diameter steel pad provides stable floor contact
• 130 mm overall length accommodates leveling height requirements
• All-steel construction for durability in industrial and mechanical environments

Compatibility

Designed as an OEM-style leveling mount for use with equipment bases, machinery frames, and fabricated support structures requiring M12 metric threaded leveling hardware.

Installation Notes

Installation is typically performed by millwrights, mechanical contractors, or equipment riggers during equipment setting operations. Thread the stud into the equipment base or mounting frame to the appropriate depth before positioning the unit on the floor surface. Use a level and appropriate wrenches to adjust mount height until the equipment is plumb and level on all points of contact. Do not exceed the rated load capacity of the mount, and ensure the floor surface is capable of supporting the applied load at each mount location.
