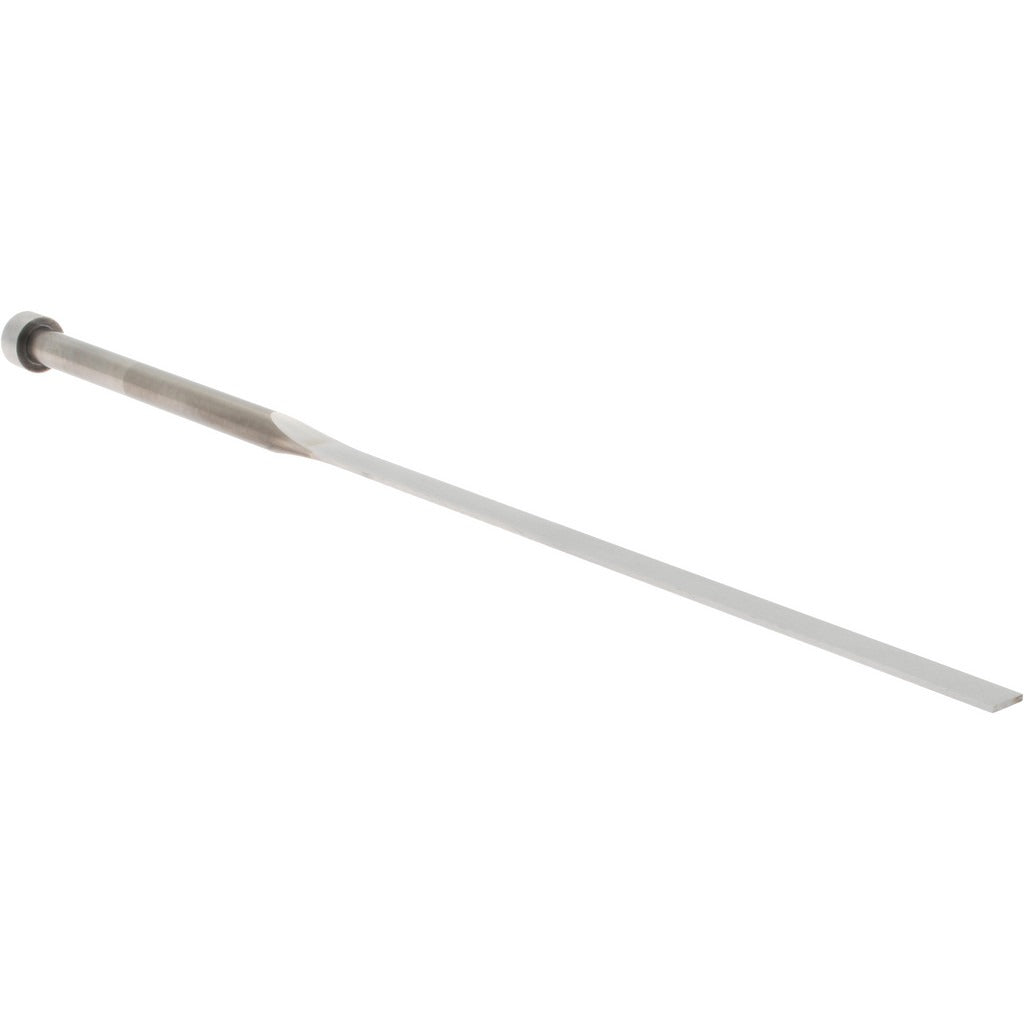

Gibraltar BE-1055 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1055 is a die mold ejector blade designed for use in injection mold tooling applications. Ejector blades serve as precision components that push molded parts free from the mold cavity at the end of each cycle. This blade measures 0.046 inches thick and 0.296 inches wide, with an overall height of 10.5 inches, making it suitable for slots and ejector systems that require a flat, blade-style profile rather than a round ejector pin. Mold technicians and toolroom machinists select ejector blades when part geometry demands ejection along a thin edge or rib section.

Ejector blades are used in plastic injection molding operations across both production and tool-and-die shops. This blade profile is commonly installed in mold bases where a standard round pin cannot provide adequate ejection force distribution across narrow part features such as ribs, walls, or thin-walled sections. The BE-1055 is sold individually and is a direct replacement or spare component for mold tooling that requires this specific blade thickness and width combination.

Key Features

• Blade thickness of 0.046 inches for use in precision-tolerance ejector slots
• Blade width of 0.296 inches to match narrow rib and wall ejection geometries
• Overall height of 10.5 inches provides length for deep mold stack configurations
• Flat blade profile distributes ejection force along linear part features
• Sold as a single-piece unit with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement ejector blade for injection mold tooling requiring a 0.046-inch-thick by 0.296-inch-wide blade profile. Confirm slot dimensions in the mold base before installation.

Installation Notes

Ejector blades are installed and serviced by mold technicians or toolroom machinists. Always ensure the molding machine is fully powered down, locked out, and the mold is cooled before accessing the ejector system. Blades must be fitted to matching slots with proper clearance to prevent binding or premature wear. Consult the mold design drawings to verify blade length, thickness, and width tolerances before pressing or fitting the blade into the ejector plate.
