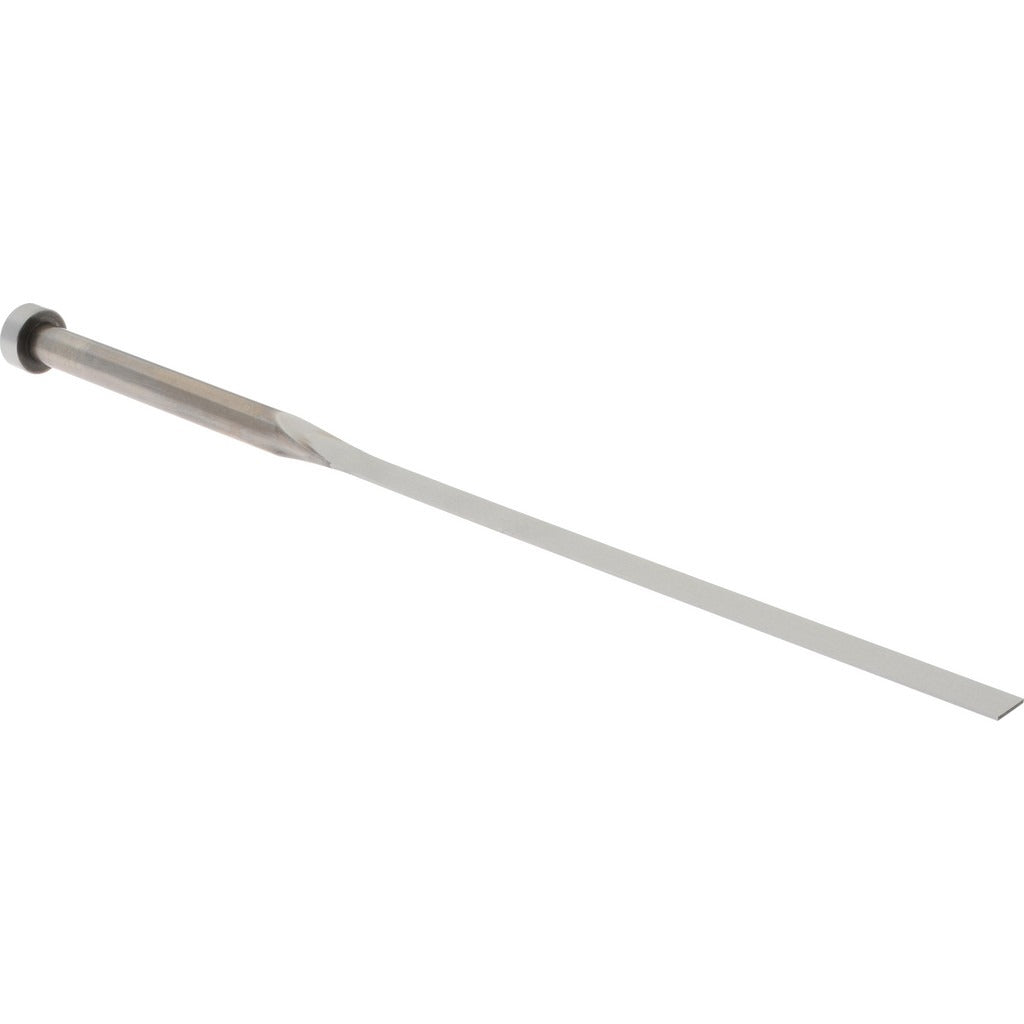

Gibraltar BE-1052 Die Mold Ejector Blade 0.032x0.59 in

Product Description

The GIBRALTAR BE-1052 is a die mold ejector blade designed for use in injection mold tooling applications. This blade assists in the ejection of molded parts from die cavities, providing consistent and reliable part release during production cycles. With a blade thickness of 0.032 inches and a blade width of 0.59 inches, the BE-1052 is sized for precision fitment in standard ejector blade pockets. Installation and replacement are typically performed by mold technicians and toolroom machinists maintaining production molds.

The BE-1052 is suited for use in injection molding and die casting tooling where flat ejector blades are required to release parts with thin walls, ribs, or other features that standard round ejector pins cannot adequately support. The blade profile allows targeted ejection force along elongated or narrow part geometries. It is commonly installed during mold builds or as a replacement component during routine toolroom maintenance on production molds.

Key Features

• Blade thickness of 0.032 inches for precision fit in standard ejector blade pockets
• Blade width of 0.59 inches suited for elongated ejection zones
• Overall length of 10.5 inches provides reach for deeper mold configurations
• Single-piece construction for direct drop-in replacement
• Sold individually, allowing single-blade replacement without excess inventory

Compatibility

Designed as an OEM-style replacement ejector blade for die mold tooling applications requiring a flat blade profile with 0.032-inch thickness and 0.59-inch width dimensions.

Installation Notes

Ejector blade installation and replacement should be performed by qualified mold technicians or toolroom machinists. The mold must be fully de-energized, cooled, and safely supported in a press or mold stand before any ejector component service begins. Blade pocket dimensions should be verified against the blade specifications before installation to ensure proper fit and avoid binding or premature wear. Follow the mold manufacturer's maintenance procedures and applicable shop safety standards during all toolroom operations.
