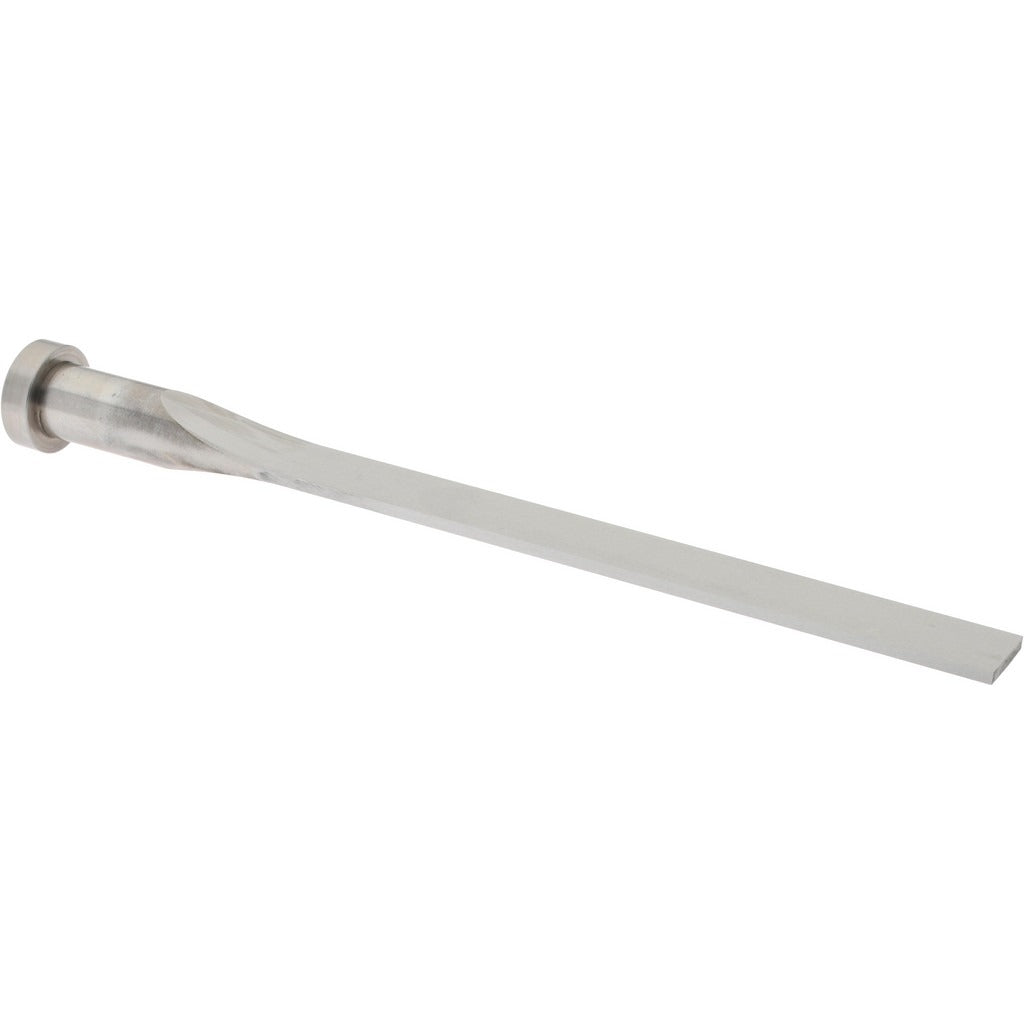

Gibraltar BE-1047 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1047 is a die mold ejector blade designed for use in injection mold tooling and die casting applications. Ejector blades are precision-ground flat components that push molded parts free from the mold cavity at the end of each cycle. This blade measures 0.094 inches thick and 0.547 inches wide, making it suitable for narrow ejection slots where round ejector pins cannot be used. Tool and die technicians and mold maintenance professionals install and replace these components during routine mold servicing or when worn blades cause part ejection failures.

Ejector blades like the BE-1047 are used in plastic injection molds, die cast tooling, and compression mold assemblies where flat or elongated ejection geometry is required. They are commonly installed in mold bases that require a blade-style ejector to clear ribs, walls, or other features with tight clearances. This component is a direct replacement blade intended for single-unit servicing of existing mold assemblies.

Key Features

• Blade thickness of 0.094 inches for precise fit in narrow ejector slots
• Blade width of 0.547 inches suited for flat ejection geometries
• 7.5 inch height provides sufficient working length for most standard mold bases
• Single-piece construction for direct drop-in replacement
• Packaged as a single unit for individual mold maintenance servicing

Compatibility

Designed as an OEM-style replacement ejector blade for die mold tooling assemblies requiring a flat blade ejector with a 0.094 inch thickness and 0.547 inch width profile.

Installation Notes

Ejector blade replacement is performed by qualified tool and die technicians or mold maintenance personnel. The mold must be fully de-energized, cooled, and safely supported in an open position before any ejector components are accessed or replaced. Blades should be inspected for proper seating and alignment within the ejector plate before the mold is returned to service. Follow all applicable shop safety procedures when working with mold tooling under press or clamping equipment.
