Gibraltar BE-1041 Die Mold Ejector Blade

Product Description

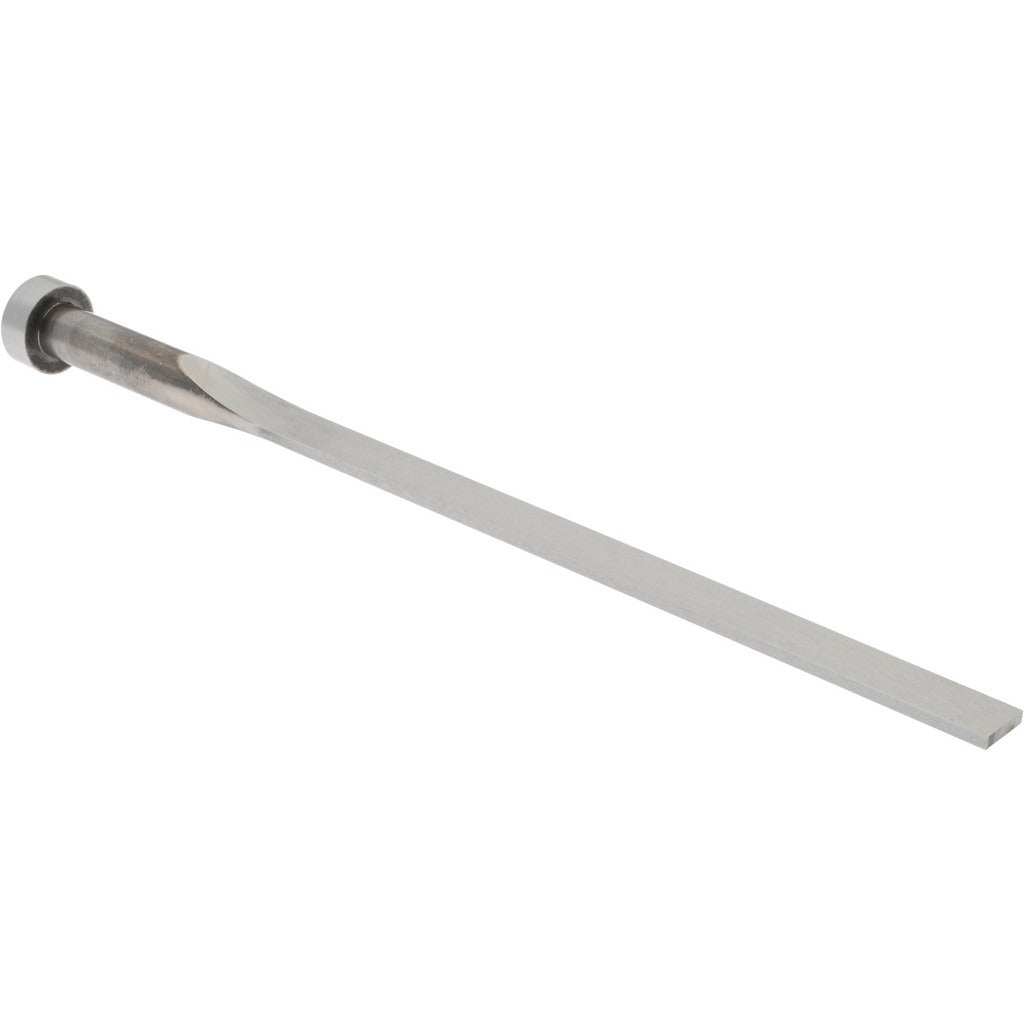

The GIBRALTAR BE-1041 is a die mold ejector blade designed for use in injection mold tooling and die casting applications. Ejector blades push formed parts out of mold cavities after each cycle, making precise dimensional tolerances critical to proper function and mold longevity. This blade measures 0.078 inches thick and 0.359 inches wide, with an overall height of 7.5 inches. It is a direct-replacement component installed by toolmakers, moldmakers, and maintenance technicians responsible for keeping production tooling in service.

Ejector blades of this profile are commonly used in plastic injection molds and die cast tooling where flat or elongated part geometry requires a blade-style ejector rather than a round ejector pin. The slim profile and precise cross-section make this blade suitable for tight-clearance cavities and cores. This part ships as a single blade and is suited for both original tooling builds and maintenance replacement scenarios in production shop environments.

Key Features

• Blade thickness of 0.078 inches for tight-tolerance ejector slots
• Blade width of 0.359 inches accommodates flat-part ejection geometry
• Overall height of 7.5 inches provides reach for standard mold base configurations
• Sold individually, allowing single-piece replacement without minimum quantity commitments beyond one unit

Compatibility

Designed as an OEM-style replacement ejector blade for die mold and injection mold tooling applications requiring a 0.078-inch-thick by 0.359-inch-wide blade profile.

Installation Notes

Ejector blade replacement is performed by qualified toolmakers or mold maintenance technicians. The mold must be fully de-energized, cooled, and removed from the press before any ejector system service begins. Verify blade slot dimensions in the mold base before installation to confirm proper fit and clearance. Follow applicable shop safety procedures and equipment lockout protocols when working on production tooling.
