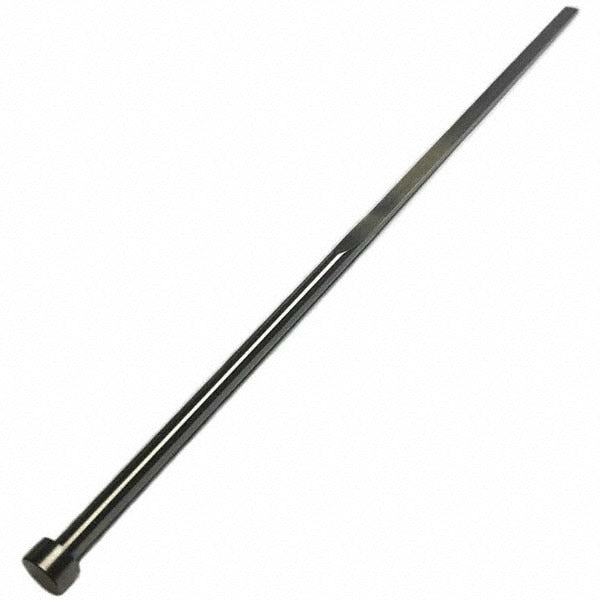

Gibraltar BE-1034 Die Mold Ejector Blade 7.5 in

Product Description

The GIBRALTAR BE-1034 is a die mold ejector blade designed for use in injection mold and die casting tooling applications. It functions as a replacement ejector component, pushing molded parts free from the mold cavity after each cycle. The blade measures 0.046 inches thick and 0.296 inches wide, with an overall length of 7.5 inches and a blade length of 5.0 inches. The head diameter is 0.5 inches and head height is 0.25 inches, with a shank diameter of 0.312 inches. This part is sold individually and is suited for toolmakers, mold technicians, and die maintenance professionals working in production or repair environments.

Ejector blades of this profile are used in plastic injection molds and die casting tools where flat or thin-walled part geometries require a blade-style ejector rather than a round pin. The flat blade cross-section allows ejection along slots or ribs in the mold core without distorting the part. This blade is appropriate for both OEM tooling builds and maintenance replacements in industrial mold shops and manufacturing facilities.

Key Features

• Blade thickness of 0.046 inches suits thin-slot ejection applications in precision mold tooling
• Blade width of 0.296 inches provides adequate ejection surface for ribbed or slotted part geometries
• Overall length of 7.5 inches with a 5.0-inch blade length accommodates standard mold plate stack heights
• Head diameter of 0.5 inches and head height of 0.25 inches for positive retention in ejector plates
• Shank diameter of 0.312 inches for guided fit through ejector retainer plates
• Sold individually with a minimum order quantity of 1, allowing single-piece replacement

Compatibility

Designed as an OEM-style replacement ejector blade for die mold tooling systems requiring a 0.046-inch by 0.296-inch blade profile with a 7.5-inch overall length.

Installation Notes

Ejector blade replacement is performed by qualified toolmakers or mold maintenance technicians. The mold must be fully de-energized, cooled, and removed from the press before any ejector system work is performed. Blades should be inspected for fit and alignment within the ejector retainer plate before the mold is returned to service. Follow your facility safety procedures and applicable OSHA machine guarding standards when servicing mold tooling.
