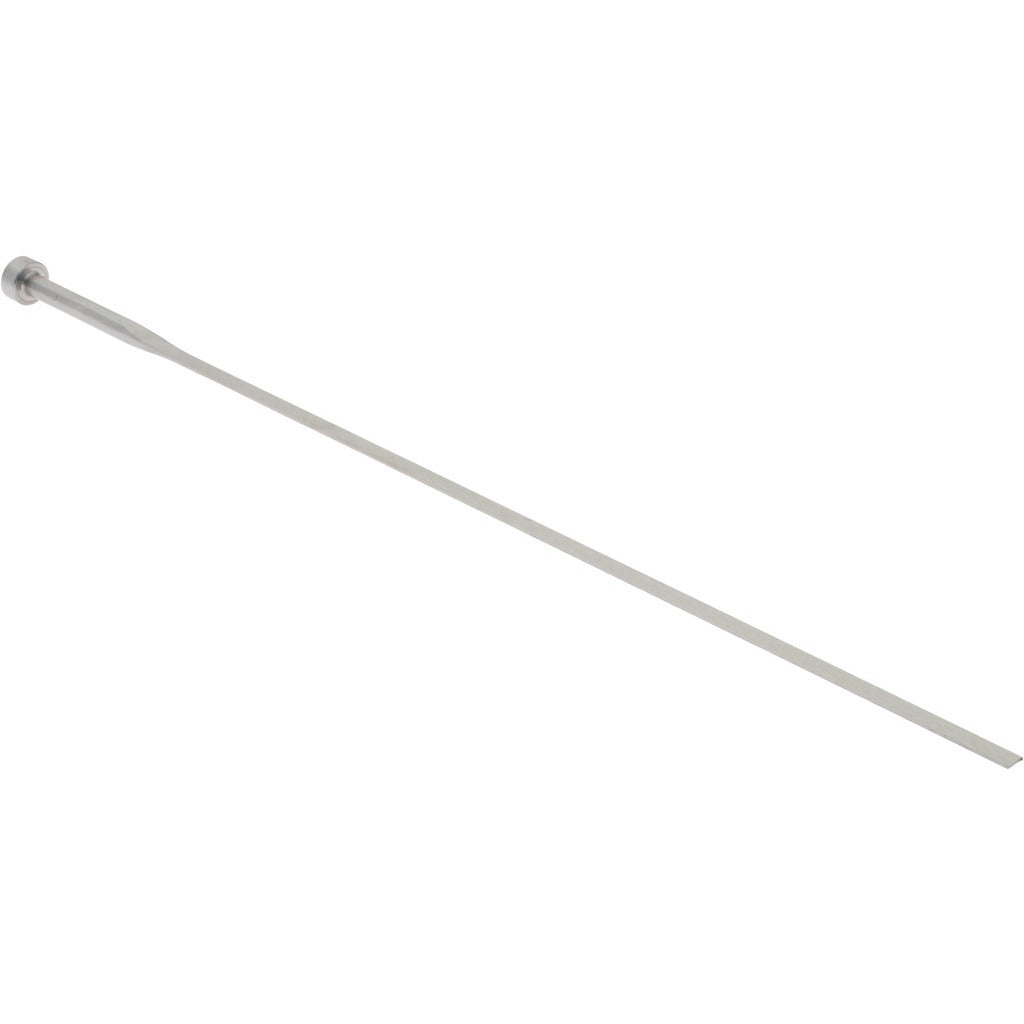

Gibraltar BE-1001 Die Mold Ejector Blade 0.015x0.100 in

Product Description

The GIBRALTAR BE-1001 is a die mold ejector blade designed for use in injection mold tooling and die casting applications. Ejector blades are flat, precision-ground components that push molded parts free from the mold cavity at the end of each cycle. The BE-1001 measures 0.015 inches thick and 0.100 inches wide, with an overall height of 6.5 inches, making it suited for narrow ejection slots where round ejector pins cannot be used. Toolmakers and mold maintenance technicians select blade ejectors when part geometry or gate placement requires a flat profile to avoid damage to delicate features.

This ejector blade is appropriate for use in injection mold bases and die mold assemblies in both production and repair scenarios. It is typically installed in mold ejector retainer plates during mold build or scheduled maintenance. The slim 0.015-inch blade thickness and 0.100-inch width make it a practical replacement in tight-tolerance ejection systems where standard round pins are not a viable option. It is sold and packaged individually.

Key Features

• Blade thickness of 0.015 inches for narrow-slot ejection applications
• Blade width of 0.100 inches for precise fitment in mold retainer plates
• Overall blade height of 6.5 inches to accommodate standard mold base ejector travel
• Flat blade profile enables ejection in areas inaccessible to round ejector pins
• Sold as a single piece to allow exact-quantity replacement purchases

Compatibility

Designed as an OEM-style replacement ejector blade for die mold and injection mold tooling systems that require a flat blade ejector with a 0.015-inch thickness and 0.100-inch width specification.

Installation Notes

Ejector blade installation and replacement should be performed by a qualified toolmaker or mold technician. Always ensure the press is locked out and the mold is fully cooled before disassembling the ejector plate assembly. Blades must seat flush and square in the retainer plate to prevent binding or breakage during ejection cycles. Verify blade length and clearance within the mold base before returning the tool to production.
