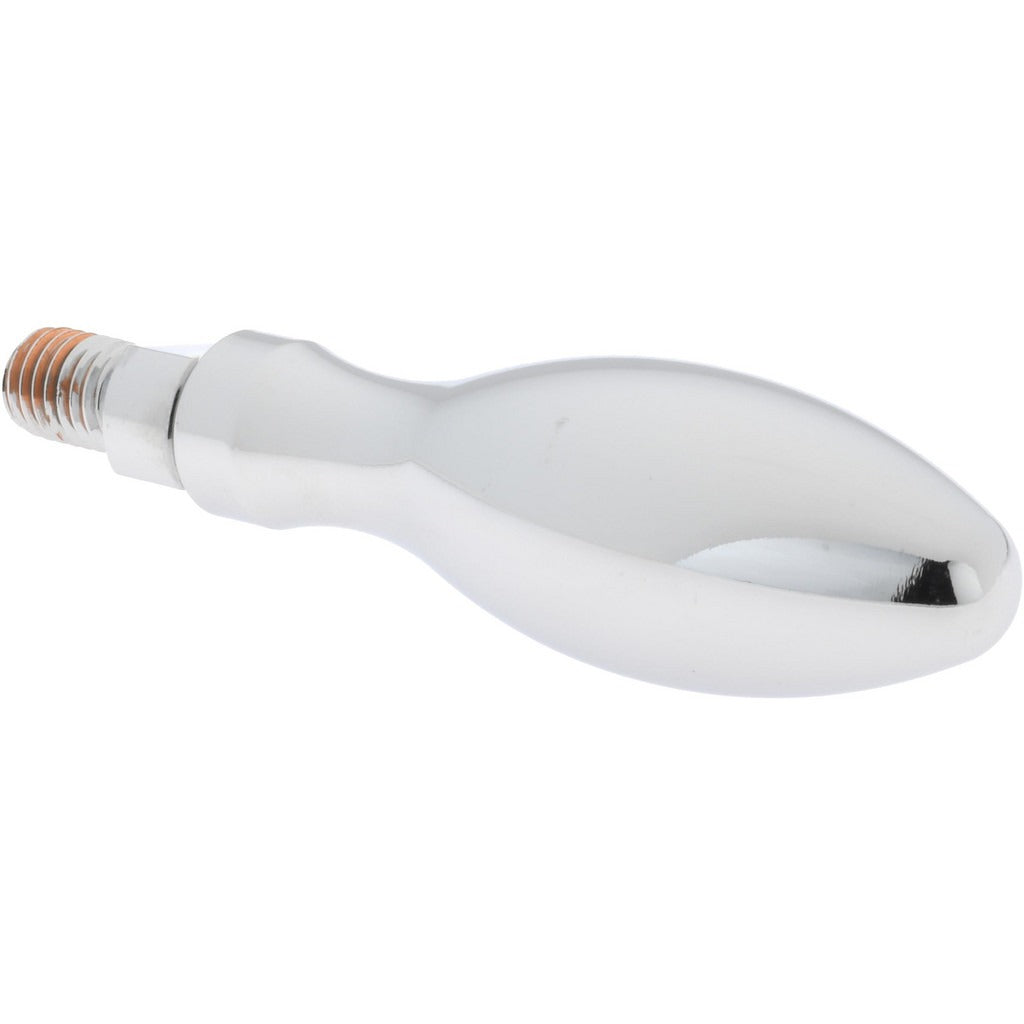

Gibraltar B6-M10-G Revolving Handwheel Machine Handle

Product Description

The GIBRALTAR B6-M10-G is a revolving handwheel machine handle designed for use on manually operated industrial and machine tool equipment. It features a bulb-shaped handle that rotates freely around the stem, reducing hand fatigue during extended operation. The stem is threaded M10x1.5, providing a standard metric fastening interface. Both the handle and stem are constructed from steel, offering durability in workshop and production environments. This type of handle is commonly installed by millwrights, machine builders, and maintenance technicians on equipment that requires frequent manual adjustment or feed control.

This handle suits a range of manual machine applications including lathes, milling machines, drill presses, and industrial fixtures where a threaded stem mount is specified. The M10x1.5 thread pitch is a widely used metric standard, making this handle a practical replacement or upgrade component in manufacturing and maintenance settings. It is suited for both light production environments and heavy-duty shop floor use where reliable hand control is needed.

Key Features

• Revolving bulb-shape handle reduces fatigue during repetitive manual operation
• M10x1.5 threaded stem for direct metric threaded mounting
• Steel handle and steel stem construction for shop-floor durability
• Threaded stem mount type allows straightforward installation and removal

Compatibility

Designed as a direct-fit replacement or new-install handwheel handle for manual machinery and equipment using an M10x1.5 threaded stem interface.

Installation Notes

Installation is typically performed by a millwright or maintenance technician. Ensure the machine is powered down and any stored mechanical energy is released before removing or installing handles. Thread the M10x1.5 stem into the mating threaded bore by hand first to avoid cross-threading, then tighten with appropriate tooling to the equipment manufacturer's specifications. Follow applicable OSHA machine guarding and lockout/tagout procedures during service.
