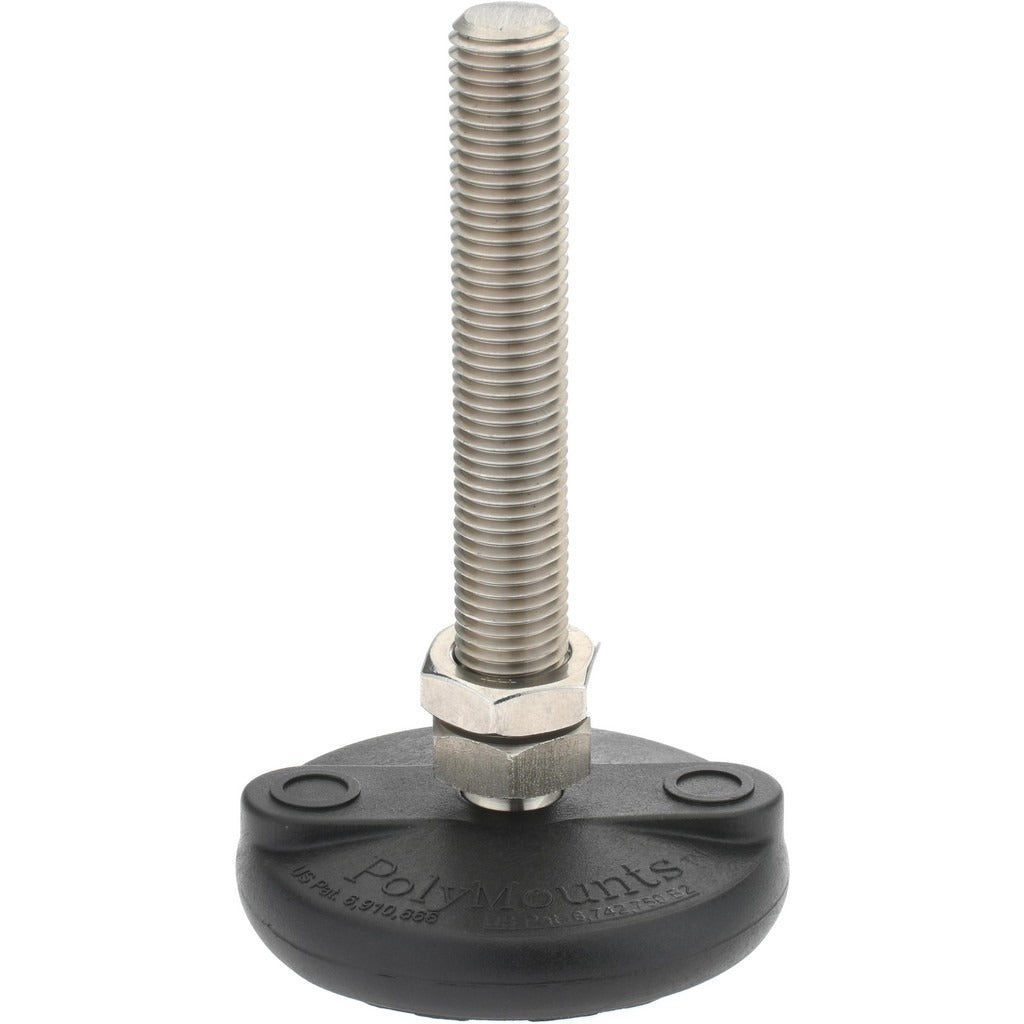

Gibraltar B-SMNYLC34-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR B-SMNYLC34-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The mount features a stainless steel M16 threaded stud and an elastomer pad base that absorbs vibration and allows for minor angular adjustment on uneven surfaces. With a load capacity of 2,270 kg and a base diameter of 76 mm, this mount is built for demanding industrial and commercial applications where precision leveling and load stability are critical. Maintenance technicians and millwrights typically install these mounts during equipment setting and alignment operations.

This leveling mount is suited for use in industrial facilities, manufacturing plants, and commercial equipment installations where floor surfaces may be uneven or where vibration isolation is required. The pivotal base design accommodates slight misalignment between the mounting surface and the equipment frame. It is appropriate for use under HVAC equipment bases, compressor frames, pump skids, and similar mechanical assemblies that require secure, level positioning.

Key Features

• Stainless steel M16 threaded stud for corrosion resistance and secure attachment
• Elastomer pad provides vibration dampening and surface protection
• Pivotal base design accommodates angular misalignment on uneven floors
• 2,270 kg load capacity supports heavy industrial and commercial equipment
• 76 mm base diameter distributes load across a stable footprint

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial and commercial equipment requiring M16 studded adjustable feet with elastomer pad bases.

Installation Notes

Installation is typically performed by millwrights or mechanical technicians during equipment setting and alignment. Power down and de-energize all connected equipment before adjusting or replacing leveling mounts. Use appropriate wrenches for M16 fasteners and verify load ratings are not exceeded before final tightening. Follow applicable mechanical and building codes for equipment anchoring in your jurisdiction.
