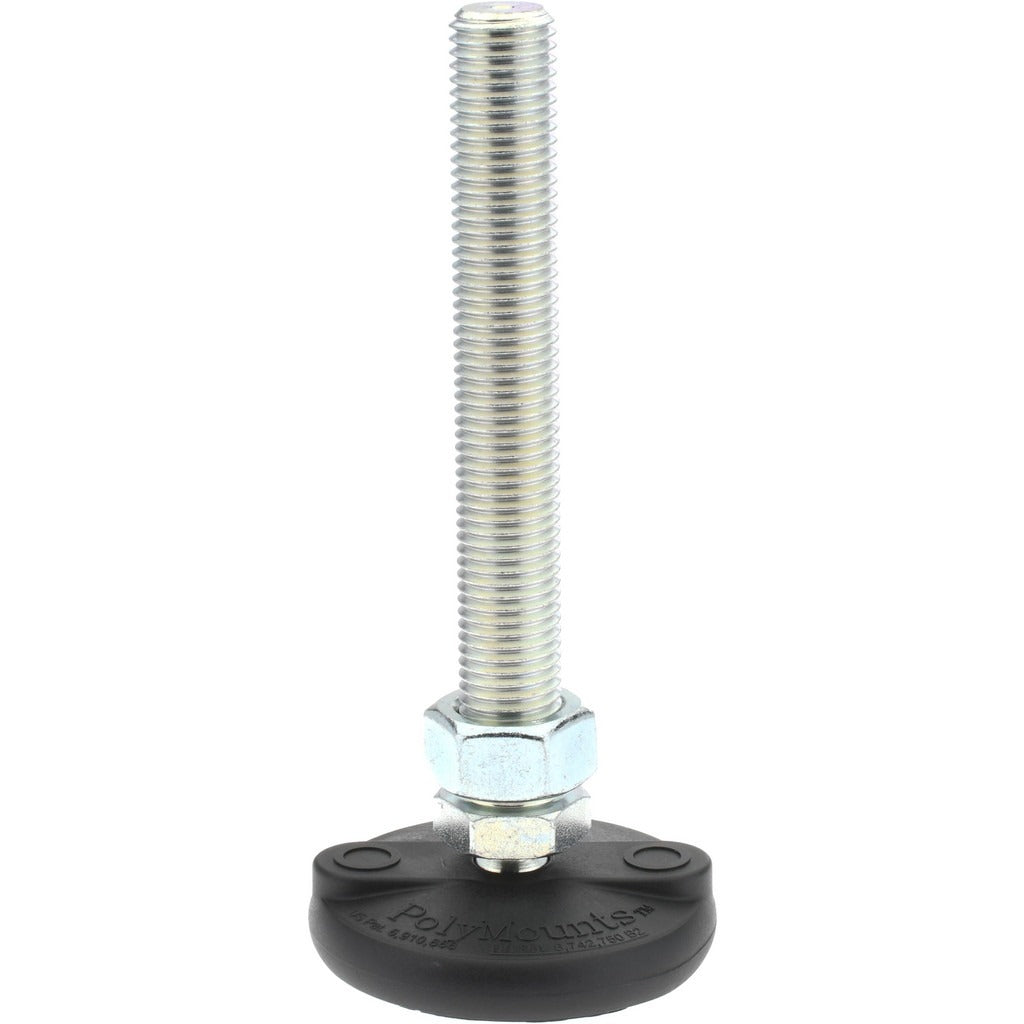

Gibraltar B-MNYLD36-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR B-MNYLD36-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment bases, and industrial fixtures. The mount features a steel stud construction with an elastomer pad base that absorbs vibration and compensates for minor floor irregularities. With a load capacity of 2,270 kg and a base diameter of 76 mm, this mount is built for demanding environments where precise leveling and load distribution are critical. The M20 bolt thread size allows for straightforward integration into standard machine bases. Millwrights, maintenance technicians, and industrial installers use this type of mount during equipment installation and realignment work.

This leveling mount is suited for use in manufacturing facilities, mechanical equipment rooms, and industrial plant floors where machinery must remain level and vibration-isolated. The pivotal design accommodates slight angular misalignment between the stud and the mounting surface, making it practical for installations on floors that are not perfectly flat. The elastomer pad protects flooring surfaces and reduces vibration transmission to the structure. It is appropriate for both initial equipment installation and field service realignment tasks.

Key Features

• 2,270 kg load capacity supports heavy industrial equipment
• 76 mm base diameter provides a stable footprint for the mount
• Elastomer pad absorbs vibration and protects floor surfaces
• Steel stud construction for durability under load
• M20 bolt thread size for compatibility with standard machine bases
• Pivotal design compensates for minor angular misalignment between mount and surface

Compatibility

Designed as a general-purpose OEM-style leveling mount for industrial machinery and equipment bases requiring M20 threaded stud mounting points.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians. De-energize and lock out all power to the equipment before beginning any leveling or mount replacement work. Use appropriate lifting equipment when repositioning machinery to access mounting points. Verify that the floor surface is clean and free of debris before seating the elastomer pad to ensure full contact and accurate leveling.
